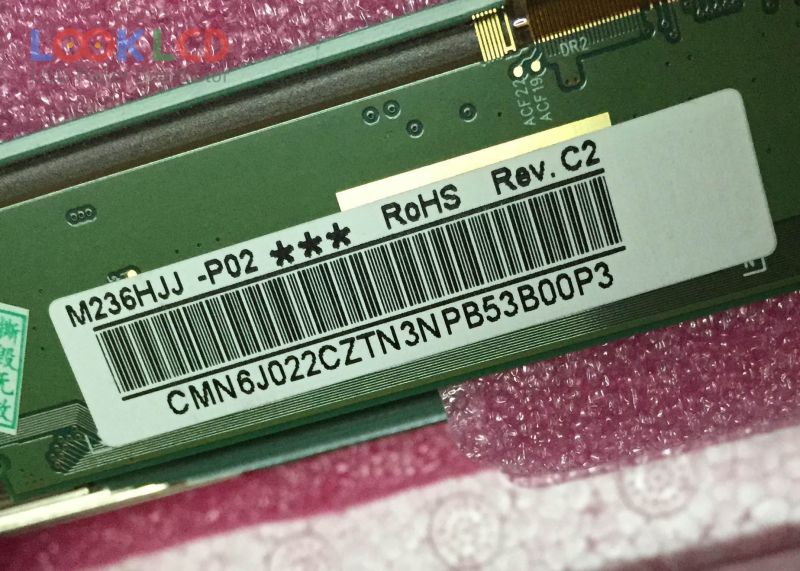

| PartNumber | M236HJJ-P02 |
| Značka | Innolux |
| Velikost | 23.6 |
| aplikace | DMPC |
| Rozlišení | 1920×1080 |
| Složení | CELL |
| Jas | 0 |
| CR | 3000:1 |
| Barvy | 16.7M |
| Podsvícení | No B/L |
| Rozhraní | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | M236HJJ-P02 |
| typ panelu | a-Si TFT-LCD , CELL |
| velikost panelu | 23.6 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | Super MVA, Normally Black, Transmissive |
| aktivní oblast | 521.28×293.22 mm |
| obrys | 534.28×306.252 mm |
| povrch | Antiglare (Haze 3%), Hard coating (3H) |
| propustnost | 4.6% (Typ.)(with Polarizer) |
| kontrastní poměr | 3000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 10 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
