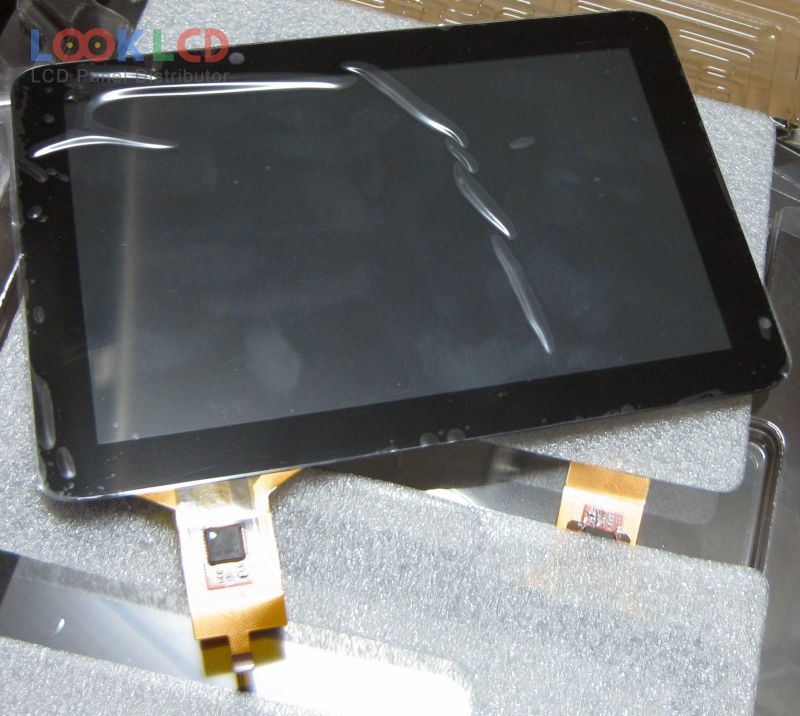

| PartNumber | N070ICG-LD3 |
| Značka | Innolux |
| Velikost | 7.0 |
| aplikace | UMPC |
| Rozlišení | 1280×800 |
| Složení | LCM |
| Jas | |
| CR | 800:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | N070ICG-LD3 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 149.76×93.6 mm |
| povrch | |
| jas | |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 13/12 (Typ.)(Tr/Td) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLED |
| signálové rozhraní | LVDS (1 ch, 6-bit) |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | UMPC |
| CLAA070ND22CW | CPT | 7.0 | 1024×600 |
| HSD070IDW1-A30 | HannStar | 7.0 | 800×480 |
| N070ICE-G02 Rev.A2 | Innolux | 7.0 | 800×1280 |
| N070ICE-G02 Rev.C3 | Innolux | 7.0 | 800×1280 |
| N070ICE-GB1 | Innolux | 7.0 | 800×1280 |
| N070ICE-GB2 | Innolux | 7.0 | 800×1280 |
| N070ICG-LD1 | Innolux | 7.0 | 1280×800 |
| N070ICG-LD3 | Innolux | 7.0 | 1280×800 |
| N070ICG-LD4 | Innolux | 7.0 | 1280×800 |
| N070ICN-GB1 | Innolux | 7.0 | 800×1280 |
| BP070WX1-100 | BOE | 7.0 | 1280×800 |
| CLAA070NC0DCW | CPT | 7.0 | 1024×600 |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| HV070WSA-100 | BOE | 7.0 | 1024×600 |
| LD070WS1-SL02 | LG Display | 7.0 | 1024×600 |
| LT080EE04100 | TOSHIBA | 8.0 | 1600×768 |
| LTD056ET0T | TOSHIBA | 5.6 | 1024×600 |
| LTD056EV7F00 | TOSHIBA | 5.6 | 1280×800 |
| N070ICG-LD1 | Innolux | 7.0 | 1280×800 |
| N070ICG-LD3 | Innolux | 7.0 | 1280×800 |
