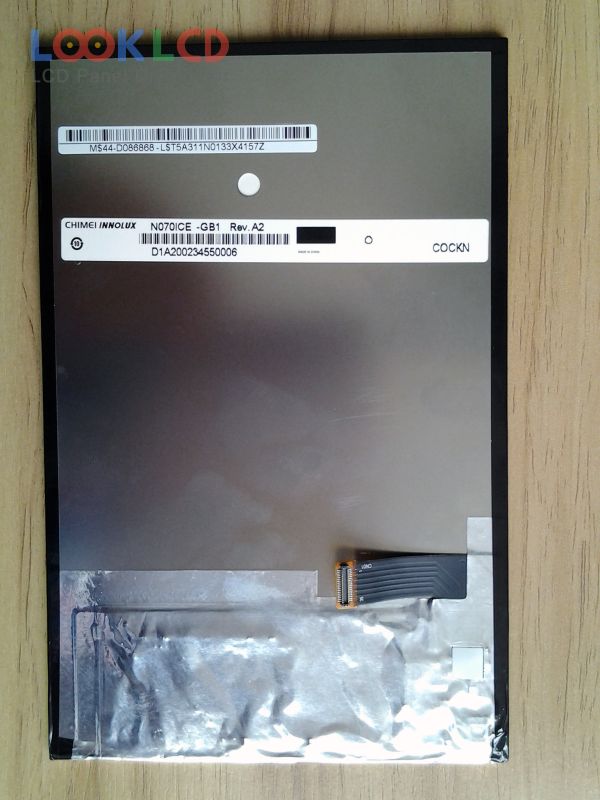

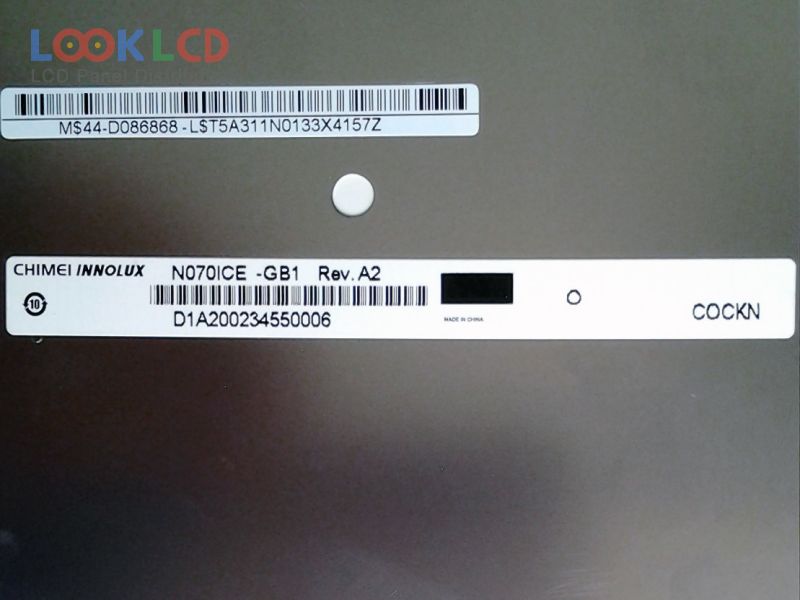

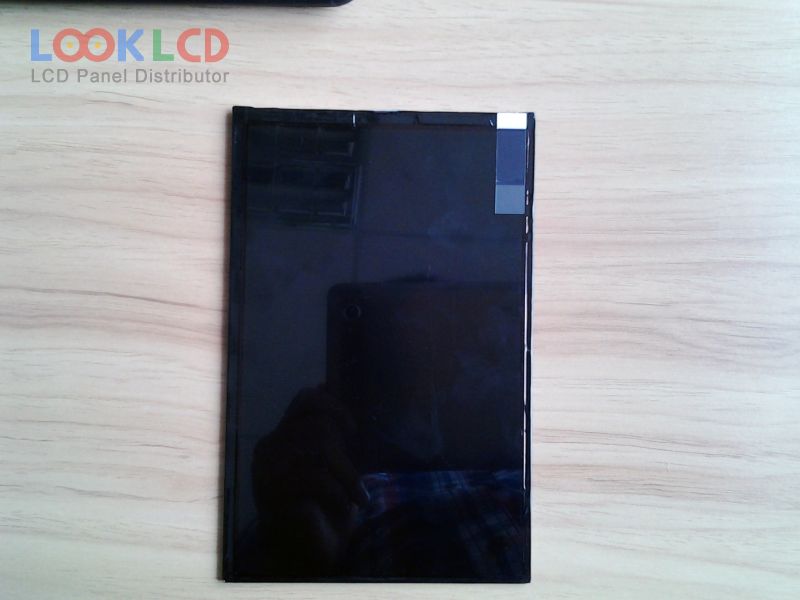

| PartNumber | N070ICE-GB1 |
| Značka | Innolux |
| Velikost | 7.0 |
| aplikace | PAD |
| Rozlišení | 800×1280 |
| Složení | LCM |
| Jas | 300 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MIPI |
| značka panelu | INNOLUX |
| panelový model | N070ICE-GB1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×1280 , WXGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 94.2×150.72 mm |
| obrys | 105.62×163.27×3.95 mm |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 14/11 (Typ.)(Tr/Td) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S6PWLEDWithout Driver |
| signálové rozhraní | MIPI (4 data lanes), 36 pins |
| vstupní napětí | 1.8/3.3V (Typ.)(VCC/VDD) |
| aplikace | PAD |
