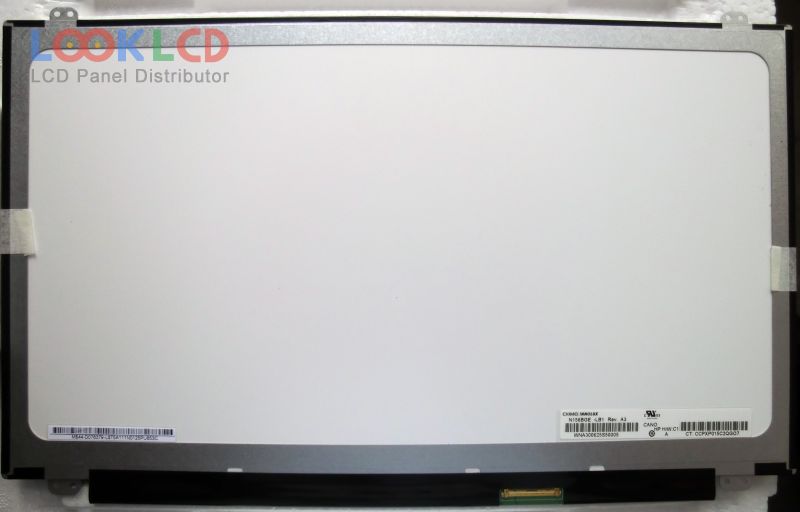

| PartNumber | N156BGE-LB1 |
| Značka | Innolux |
| Velikost | 15.6 |
| aplikace | NBPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 200 |
| CR | 600:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | N156BGE-LB1 5 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.6 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 344.232×193.536 mm |
| obrys | 359.5×223.8×3.2 mm |
| tvarový styl | Slim (PCBA Flat, Depth ≤3.2mm) |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 3/8 (Typ.)(Tr/Td) |
| úhel pohledu | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 11S3PWLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
