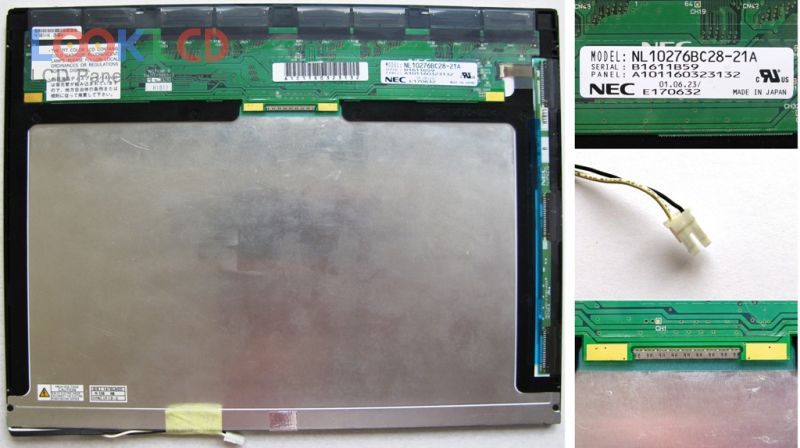

| PartNumber | NL10276BC28-21A |
| Značka | NLT |
| Velikost | 14.1 |
| aplikace | NBPC |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 150 |
| CR | 150:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | NEC |
| panelový model | NL10276BC28-21A |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 14.1 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 285.696×214.272 mm |
| obrys | 298×225.5×5.7 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Hard coating (3H) |
| jas | 150 cd/m² (Typ.) |
| kontrastní poměr | 150:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193140% |
| Doba odezvy | 15/50 (Typ.)(Tr/Td) |
| úhel pohledu | 50/50/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| NL10276AC24-05 | NLT | 12.1 | 1024×768 |
| NL10276BC16-06 | NLT | 8.4 | 1024×768 |
| NL10276BC16-06D | NLT | 8.4 | 1024×768 |
| NL10276BC20-18F | NLT | 10.4 | 1024×768 |
| NL10276BC24-21 | NLT | 12.1 | 1024×768 |
| NL10276BC28-21A | NLT | 14.1 | 1024×768 |
| NL10276BC30-15 | NLT | 15.0 | 1024×768 |
| NL10276BC30-17 | NLT | 15.0 | 1024×768 |
| NL10276BC30-18C | NLT | 15.0 | 1024×768 |
| NL10276BC30-33D | NLT | 15.0 | 1024×768 |
| B133XW02 V0 | AUO | 13.3 | 1366×768 |
| B140RW02 V1 | AUO | 14.0 | 1600×900 |
| LP133WP1-TJAA | LG Display | 13.3 | 1440×900 |
| LP140WF5-SPB3 | LG Display | 14.0 | 1920×1080 |
| LP141WX3-TLN2 | LG Display | 14.1 | 1280×800 |
| LP171WU6-TLA2 | LG Display | 17.1 | 1920×1200 |
| LTD121EWEK | TOSHIBA | 12.1 | 1280×800 |
| LTN140KT04-201 | Samsung | 14.0 | 1600×900 |
| LTN141AT12-J01 | Samsung | 14.1 | 1280×800 |
| N133BGE-EB1 | Innolux | 13.3 | 1366×768 |
