| PartNumber | NL3224AC35-05 |
| Značka | NLT |
| Velikost | 5.5 |
| aplikace | IA |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | |
| CR | |
| Barvy | Full color |
| Podsvícení | CCFL |
| Rozhraní | Analog |
| značka panelu | NEC |

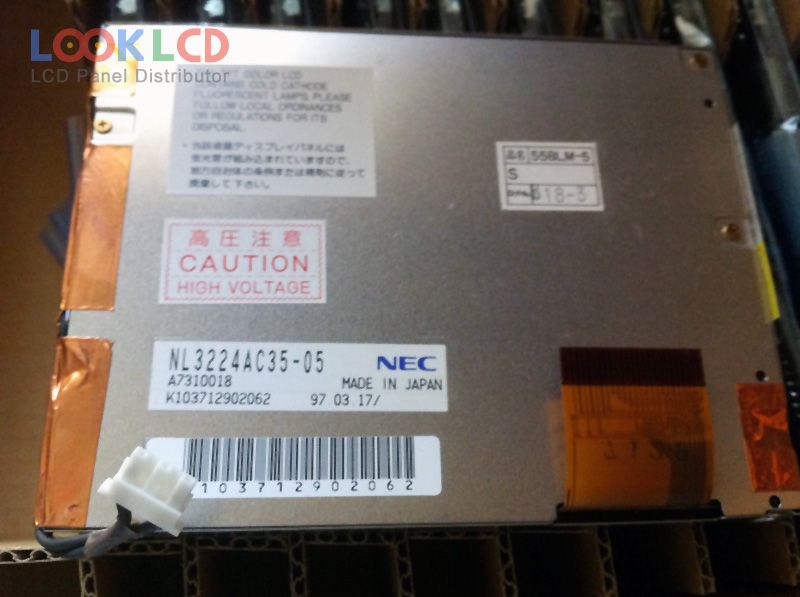

| panelový model | NL3224AC35-05 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.5 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 111.36×83.52 mm |
| povrch | |
| jas | |
| kontrastní poměr | |
| zobrazit barvy | Full color |
| Doba odezvy | |
| úhel pohledu | |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | Analog RGB + Composite Video |
| aplikace | IA |
