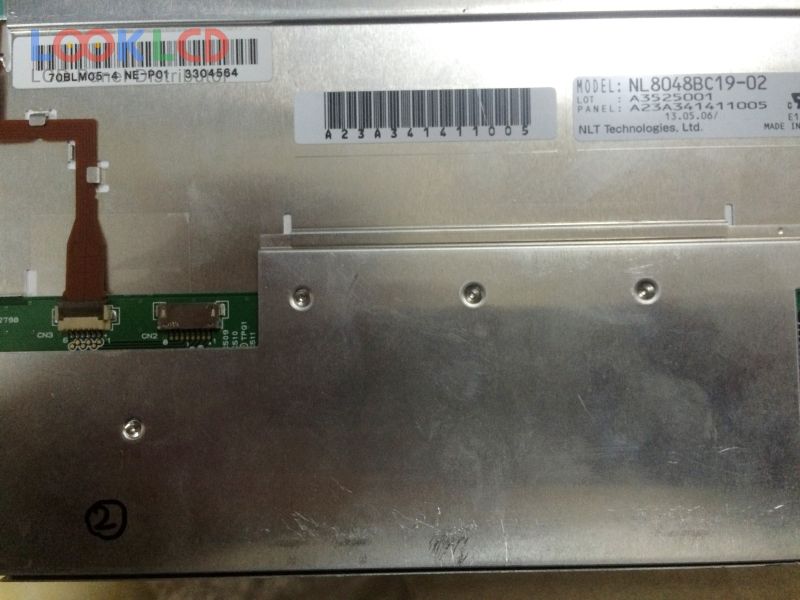

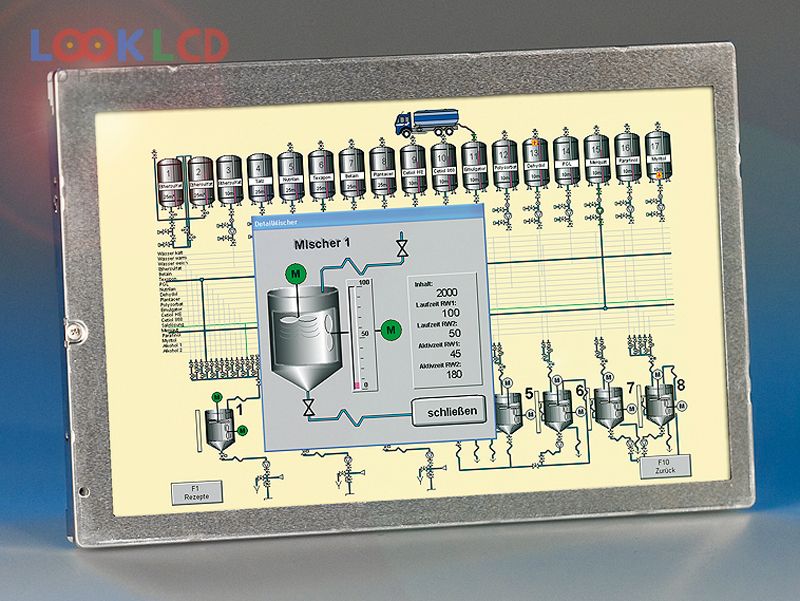

| PartNumber | NL8048BC19-02 |
| Značka | NLT |
| Velikost | 7.0 |
| aplikace | IA |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 400 |
| CR | 1000:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | NEC |
| panelový model | NL8048BC19-02 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 170×111×9 mm |
| povrch | Clear, Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193160% |
| Doba odezvy | 3/15 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3 stringsWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6/8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
| LMS700KF15 | Samsung | 7.0 | 800×480 |
| LT070CB01000 | TOSHIBA | 7.0 | |
| LTN070NL01 | Samsung | 7.0 | 1024×600 |
| NL8048AC19-13 | NLT | 7.0 | 800×480 |
| NL8048BC19-02 | NLT | 7.0 | 800×480 |
| NL8048BC19-02C | NLT | 7.0 | 800×480 |
| NL8048BC24-09D | NLT | 9.0 | 800×480 |
| NL8048BC24-12 | NLT | 9.0 | 800×480 |
| NL8048BC24-14NH | NLT | 9.0 | 800×480 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
| AM-640480G2TNQW-31H | AMPIRE | 5.7 | 640×480 |
| AM-800480RWTMQW-TA4H | AMPIRE | 7.0 | 800×480 |
| G121I1-L01 | Innolux | 12.1 | 1280×800 |
| HGS128321-B-EH-LV | Other | 2.2 | 128×32 |
| HV121X02-100 | HYDIS | 12.1 | 1024×768 |
| LB121S03-TL02 | LG Display | 12.1 | 800×600 |
| LQ150X1LG71 | SHARP | 15.0 | 1024×768 |
| NL8060BC26-30D | NLT | 10.4 | 800×600 |
| SP14N002 | KOE | 5.1 | 240×128 |
| TX54D11VC0CAB | JDI | 21.3 | 1600×1200 |
