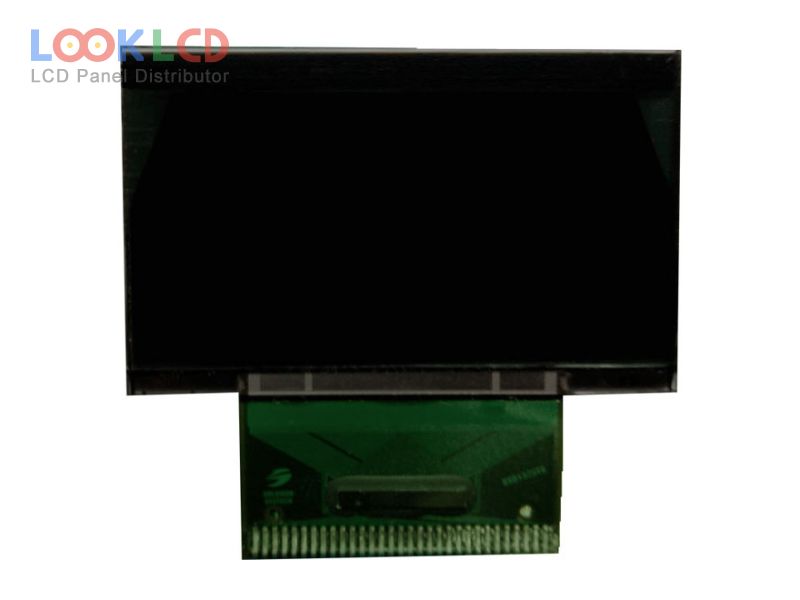

| PartNumber | OEL9M0053-Y-E |
| Značka | Other |
| Velikost | 1.6 |
| aplikace | MPH |
| Rozlišení | 128×64 |
| Složení | OLED |
| Jas | 80 |
| CR | 10000:1 |
| Barvy | Grayscale(Y) |
| Podsvícení | self |
| Rozhraní | CPU/SPI |
| značka panelu | TRULY |
| panelový model | OEL9M0053-Y-E |
| typ panelu | PM-OLED , OLED |
| velikost panelu | 1.6 inch |
| rozlišení | 128×64 |
| aktivní oblast | 36.45×18.21 mm |
| obrys | 46.83×28.77×2.2 mm |
| povrch | |
| jas | 80 cd/m² (Typ.) |
| kontrastní poměr | 10000 : 1 (Min.) |
| zobrazit barvy | Grayscale(Y) (4-bit) |
| úhel pohledu | 80/80/80/80 (Min.)(L/R/U/D) |
| frekvence | 100Hz |
| řidič ic | TAB Built-in SSD1325T6R1 |
| signálové rozhraní | 8-bit 6800/8080 parallel, SPI, 31 pins |
| vstupní napětí | 3.0/12.0V (Typ.)(VDD/VCC) |
| aplikace | MPH |
| OEL9M0039-G-E | Other | 1.5 | 128×128 |
| OEL9M0039-W-E | Other | 1.5 | 128×128 |
| OEL9M0053-Y-E | Other | 1.6 | 128×64 |
| OEL9M0064-Y-E | Other | 2.0 | 128×32 |
| OEL9M0068-G-E | Other | 0.91 | 128×32 |
| OEL9M0072-B-E | Other | 1.54 | 128×64 |
| OEL9M0078-Y-E | Other | 1.45 | 132×16 |
| OEL9M0082-Y-E | Other | 1.1 | 128×128 |
| OEL9M0084-G-E | Other | 0.91 | 128×32 |
| OEL9M0084-Y-E | Other | 0.91 | 128×32 |
| ACX425AKM | SONY | 3.7 | 480×800 |
| AMS369FG06-0 | Samsung | 3.7 | 480×800 |
| BV045WVM-N00 | BOE | 4.5 | 480×800 |
| H027QT01 | AUO | 2.7 | 208×320 |
| H497DAN01.0 | AUO | 5.0 | 1080×1920 |
| LH350WS1-SD02 | LG Display | 3.5 | 640×960 |
| LH550WF4-SD01 | LG Display | 5.5 | 1080×1920 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| LS030B3UX01D | SHARP | 3.0 | 240×400 |
| MC15G30B | Other | 1.5 | 128×128 |
