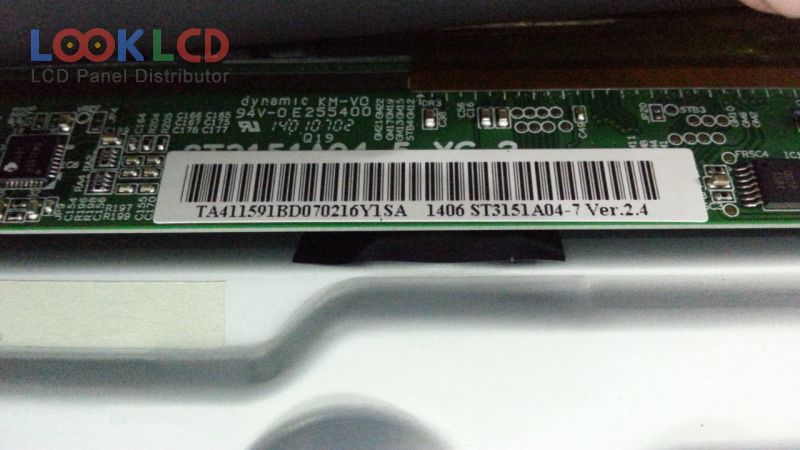

| PartNumber | ST3151A04-7 |
| Značka | CSOT |
| Velikost | 31.5 |
| aplikace | LCTV |
| Rozlišení | 1366×768 |
| Složení | CELL |
| Jas | 0 |
| CR | 4000:1 |
| Barvy | 16.7M |
| Podsvícení | No B/L |
| Rozhraní | LVDS |
| značka panelu | CSOT |
| panelový model | ST3151A04-7 |
| typ panelu | a-Si TFT-LCD , CELL |
| velikost panelu | 31.5 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | HVA, Normally Black, Transmissive |
| aktivní oblast | 697.685×392.256 mm |
| obrys | 714.835×410.57 mm |
| povrch | Antiglare (Haze 2%), Hard coating (3H) |
| hloubka skla | 0.50+0.50 mm |
| propustnost | 6.5% (Typ.)(with Polarizer) |
| kontrastní poměr | 4000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 6.5 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| signálové rozhraní | LVDS (1 ch, 8-bit), 30 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | LCTV |
