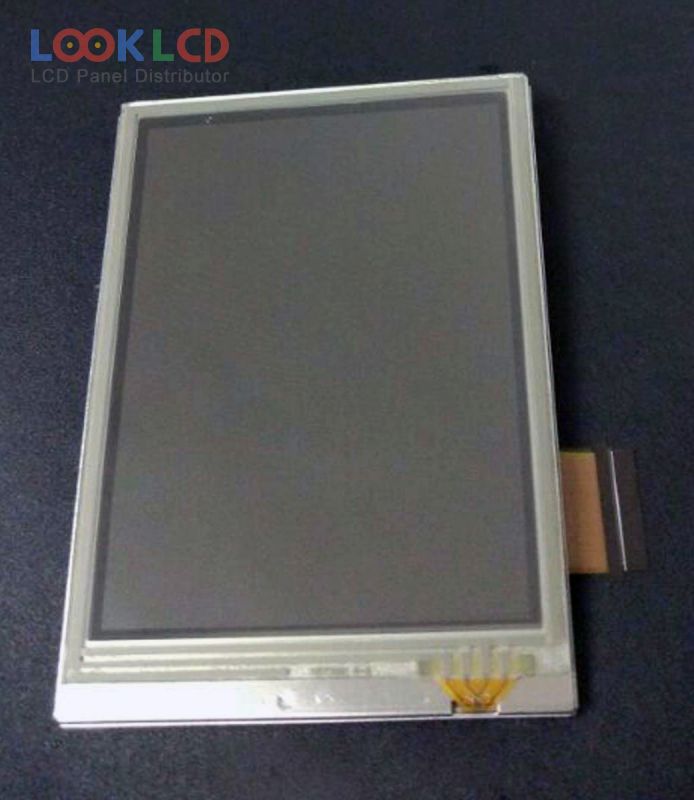

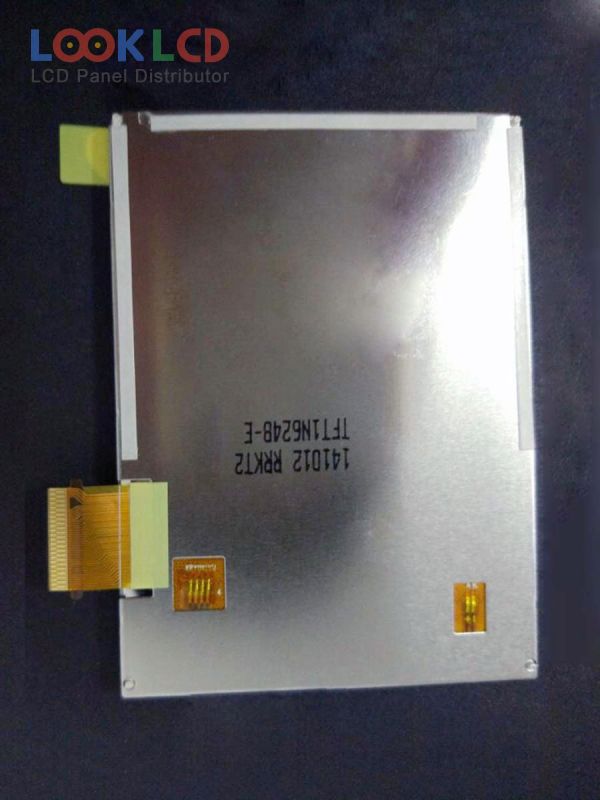

| PartNumber | TFT1N6248-E |
| Značka | Other |
| Velikost | 3.2 |
| aplikace | |
| Rozlišení | 240×320 |
| Složení | LCM |
| Jas | 80 |
| CR | |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | TRULY |
| panelový model | TFT1N6248-E |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.2 inch |
| rozlišení | 240(RGB)×320 , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 48.6×64.8 mm |
| obrys | 57.54×79.2 mm |
| povrch | |
| jas | 80 cd/m² (Typ.) |
| kontrastní poměr | |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 48 (Typ.)(Tr+Td) |
| úhel pohledu | 34/45/80/42 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit) + SPI, 45 pins |
| vstupní napětí | 2.8V (Typ.) |
| 32WQF0H | SII | 3.2 | 240×400 |
| 32WVF0H | SII | 3.2 | 480×800 |
| ACX567AKM-7 | SONY | 3.2 | 320×480 |
| AMS320FH01-0 | Samsung | 3.2 | 240×400 |
| H320QN01 V2 | AUO | 3.2 | 320×480 |
| HVA32WV1-D00 | HYDIS | 3.2 | 480×800 |
| LMS316CC01 | Samsung | 3.2 | 640×360 |
| LS032B7LX02 | SHARP | 3.2 | 320×480 |
| TFT1N6248-E | Other | 3.2 | 240×320 |
| TM032PDZ16B | Tianma | 3.2 | 320×480 |
| C-51505NFQJ-LW-ALN | Kyocera | 3.0 | 20×2 |
| CLAA048LA0ACT | CPT | 4.8 | 800×480 |
| DMC-40202NY-LY-ARE-AZN | Kyocera | 5.8 | 40×2 |
| LQ150X1LGN1 | SHARP | 15.0 | 1024×768 |
| LTD121EA6G | TOSHIBA | 12.1 | 1024×768 |
| LTD121KM7K | TOSHIBA | 12.1 | 1400×1050 |
| NL6448AC33-05 | NLT | 10.4 | 640×480 |
| P50AD2 | E Ink | 5.0 | 320×234 |
| TFD50W52MS3 | TOSHIBA | 5.0 | |
| TFD50W55MS | TOSHIBA | 5.0 |
