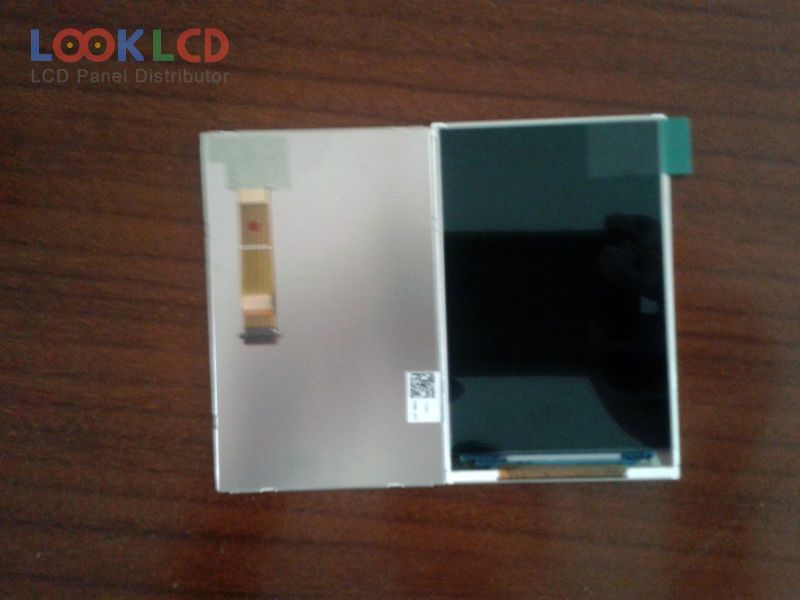

| PartNumber | H320QN01 V2 |
| Značka | AUO |
| Velikost | 3.2 |
| aplikace | MPH |
| Rozlišení | 320×480 |
| Složení | LCM |
| Jas | 400 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MDDI/MIPI |
| značka panelu | AUO |
| panelový model | H320QN01 V2 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.2 inch |
| rozlišení | 320(RGB)×480 , HVGA |
| zobrazovací mód | AMVA, Normally Black, Transmissive |
| aktivní oblast | 45.12×67.68 mm |
| obrys | 50.6×78.9×2.18 mm |
| povrch | |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193167% |
| Doba odezvy | 35 (Max.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S1PWLEDWithout Driver |
| signálové rozhraní | MDDI/MIPI, 23 pins |
| vstupní napětí | 1.8/2.85V (IOVDD/AVDD) |
| aplikace | MPH |
