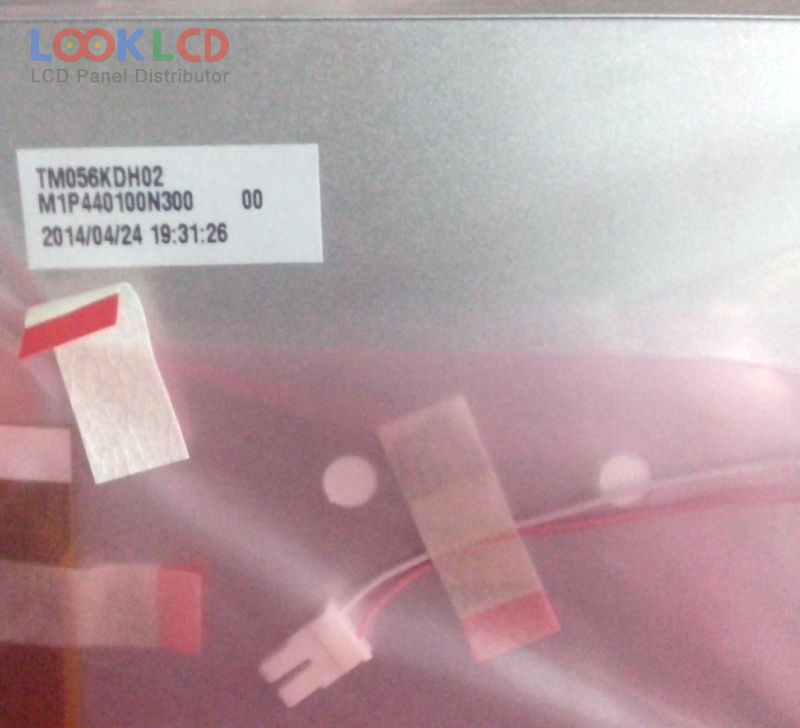

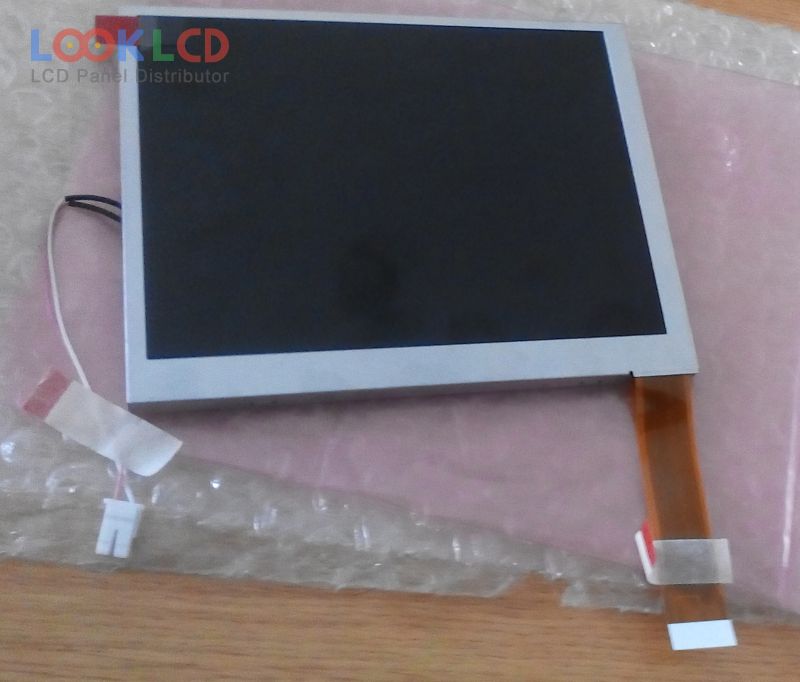

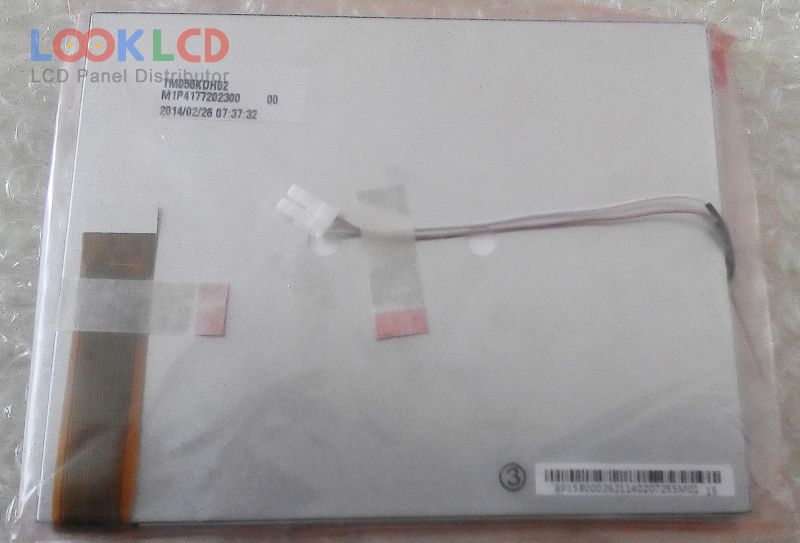

| PartNumber | TM056KDH02 |
| Značka | Tianma |
| Velikost | 5.6 |
| aplikace | VDP |
| Rozlišení | 320×234 |
| Složení | LCM |
| Jas | 330 |
| CR | 300:1 |
| Barvy | Full color |
| Podsvícení | WLED |
| Rozhraní | Analog |
| značka panelu | TIANMA |
| panelový model | TM056KDH02 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.6 inch |
| rozlišení | 320(RGB)×234 |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 113.28×84.708 mm |
| obrys | 126.5×100 mm |
| povrch | Antiglare |
| jas | 330 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | Full color , CIE193150% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 2S7PWLEDWithout Driver |
| signálové rozhraní | TFT Specific Analog RGB, 26 pins |
| vstupní napětí | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikace | VDP |
