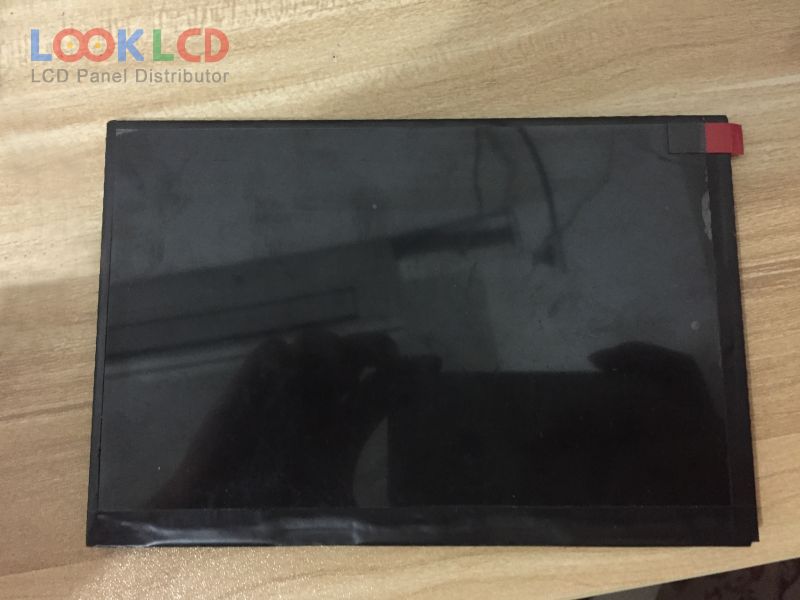

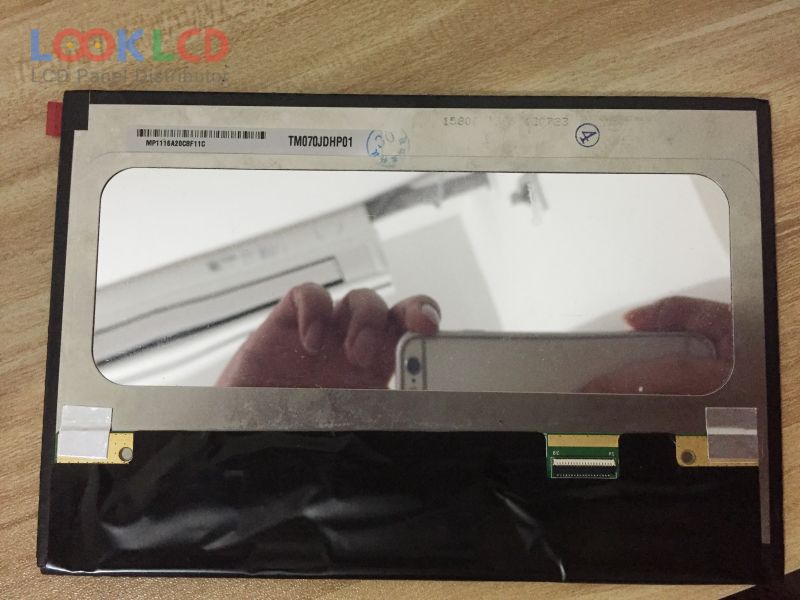

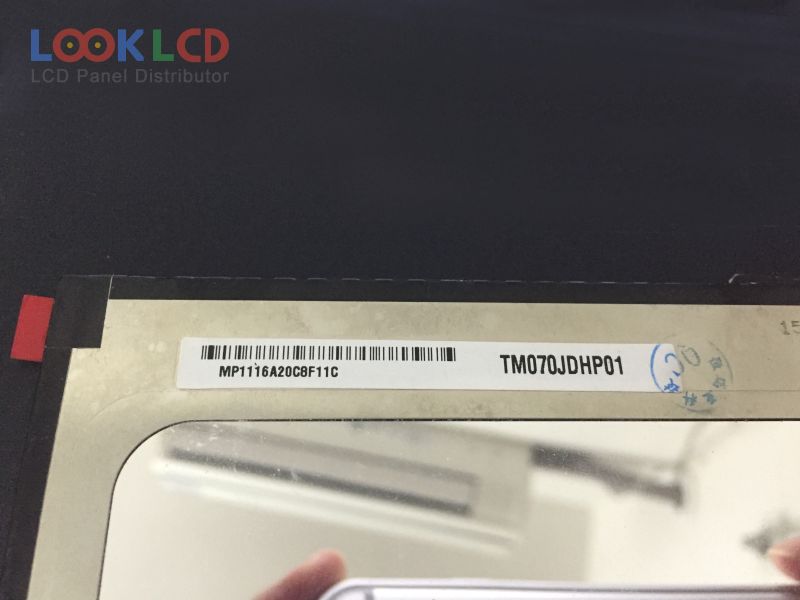

| PartNumber | TM070JDHP01-00 |
| Značka | Tianma |
| Velikost | 7.0 |
| aplikace | UMPC |
| Rozlišení | 1280×800 |
| Složení | LCM |
| Jas | 420 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | TIANMA |
| panelový model | TM070JDHP01-00 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | SIP, Normally Black, Transmissive |
| aktivní oblast | 149.76×93.6 mm |
| obrys | 161×107×4.4 mm |
| povrch | Antireflection |
| jas | 420 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193150% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 9S2PWLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 8-bit), 39 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | UMPC |
