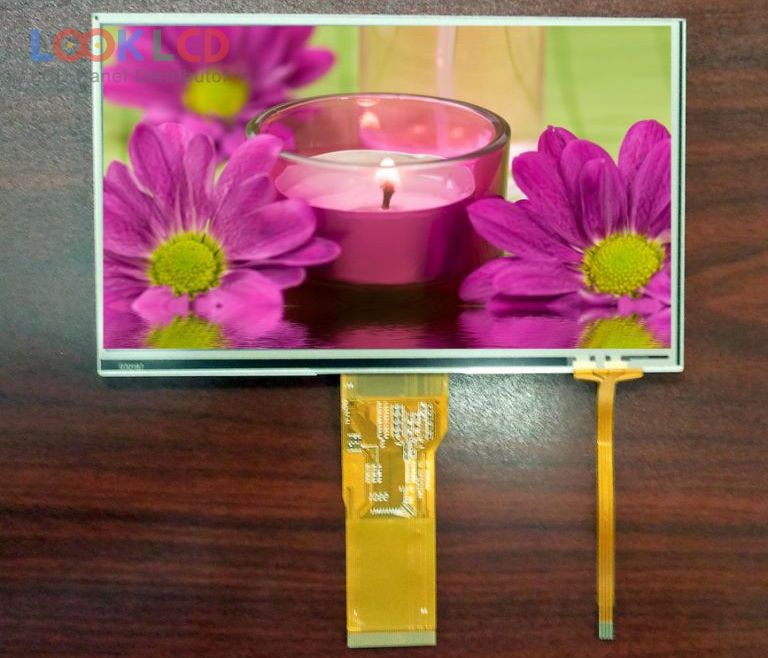

| PartNumber | TM070RBH10 |
| Značka | Tianma |
| Velikost | 7.0 |
| aplikace | MP4 |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 280 |
| CR | 500:1 |
| Barvy | 262K/16.2M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | TIANMA |
| panelový model | TM070RBH10 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 154.08×85.92 mm |
| obrys | 164.9×100×7.1 mm |
| povrch | Antiglare |
| jas | 280 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K/16.2M (6-bit / 6-bit + Dithering), CIE193149% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S8PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6/8-bit), 50 pins |
| vstupní napětí | 3.3/10.6/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikace | MP4 |
| TM070DDH01 | Tianma | 7.0 | 1024×600 |
| TM070DDH02 | Tianma | 7.0 | 1024×600 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
| TM070DDH08 | Tianma | 7.0 | 1024×600 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
| TM070RBH10 | Tianma | 7.0 | 800×480 |
| TM070RDH01 | Tianma | 7.0 | 800×480 |
| TM070RDH10 | Tianma | 7.0 | 800×480 |
| TM070RDH11 | Tianma | 7.0 | 800×480 |
| TM070SDH03 | Tianma | 7.0 | 800×600 |
| A065VL01 V2 | AUO | 6.5 | 800×480 |
| AT070TN92 V.3 | Innolux | 7.0 | 800×480 |
| BA070WS1-100 | BOE | 7.0 | 1024×600 |
| CLAA070LB01CW | CPT | 7.0 | 800×480 |
| CLAA070NC0BCT | CPT | 7.0 | 1024×600 |
| LB070WV4-TD02 | LG Display | 7.0 | 800×480 |
| LMS430HF11 | Samsung | 4.3 | 480×272 |
| LMS430HF12-003 | Samsung | 4.3 | 480×272 |
| LMS700KF06 | Samsung | 7.0 | 800×480 |
| LQ043T3DX03 | SHARP | 4.3 | 480×272 |
