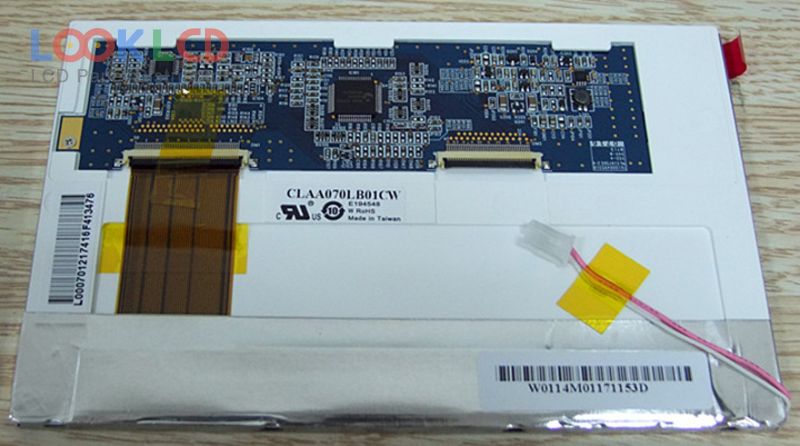

| PartNumber | CLAA070LB01CW |
| Značka | CPT |
| Velikost | 7.0 |
| aplikace | MP4 |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 220 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | CPT |
| panelový model | CLAA070LB01CW |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 165×104×5.8 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 220 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 7/13 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | MP4 |
| CLAA070JA1BCW | CPT | 7.0 | 480×234 |
| CLAA070LF05CW | CPT | 7.0 | 800×480 |
| CLAA070MA32BW | CPT | 7.0 | 800×600 |
| CLAA070NC0DCT | CPT | 7.0 | 1024×600 |
| CLAA070ND23CW | CPT | 7.0 | 1024×600 |
| CLAA070ND28CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| CLAA070NP01 | CPT | 7.0 | 1024×600 |
| CLAA070NQ01 XN | CPT | 7.0 | 1024×600 |
| CLAA070NQ02 XN | CPT | 7.0 | 1024×600 |
| A065VL01 V2 | AUO | 6.5 | 800×480 |
| A070VW04 V4 | AUO | 7.0 | 800×480 |
| AT070TN93 | Innolux | 7.0 | 800×480 |
| BA070WS1-300 | BOE | 7.0 | 1024×600 |
| CLAA070NC0BCT | CPT | 7.0 | 1024×600 |
| HSD070PFW3-B02 | HannStar | 7.0 | 1024×600 |
| HSD089IFW1-B00 | HannStar | 8.9 | 1024×600 |
| HV070WS1-101 | HYDIS | 7.0 | 1024×600 |
| LB070WV4-TJ01 | LG Display | 7.0 | 800×480 |
| Q070LRE-L81 | Innolux | 7.0 | 1024×600 |
