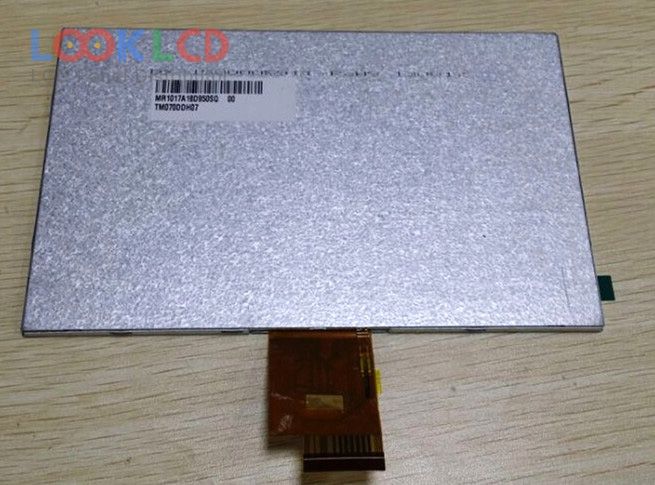

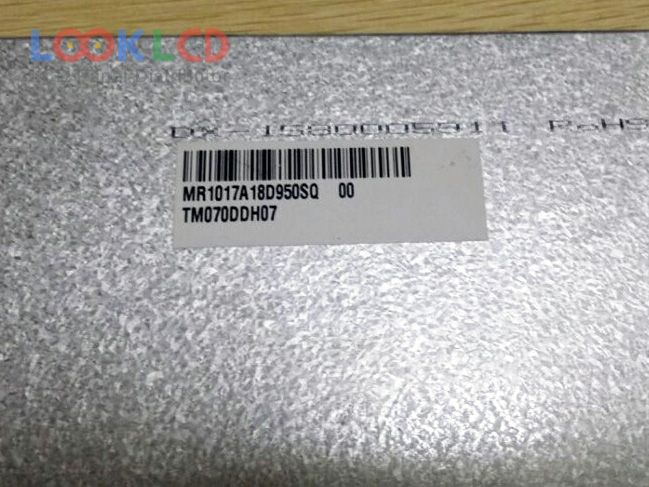

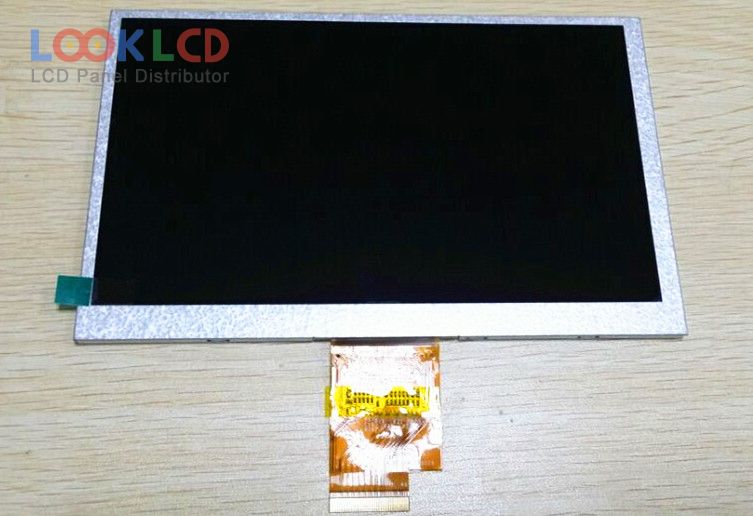

| PartNumber | TM070DDH07 |
| Značka | Tianma |
| Velikost | 7.0 |
| aplikace | MP4 |
| Rozlišení | 1024×600 |
| Složení | LCM |
| Jas | 250 |
| CR | 500:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | TIANMA |
| panelový model | TM070DDH07 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 1024(RGB)×600 , WSVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 153.6×90 mm |
| obrys | 165.75×105.39×3.7 mm |
| povrch | Antiglare |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Doba odezvy | 20 (Typ.)(Tr+Td) |
| úhel pohledu | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S6PWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6/8-bit), 40 pins |
| vstupní napětí | 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikace | MP4 |
