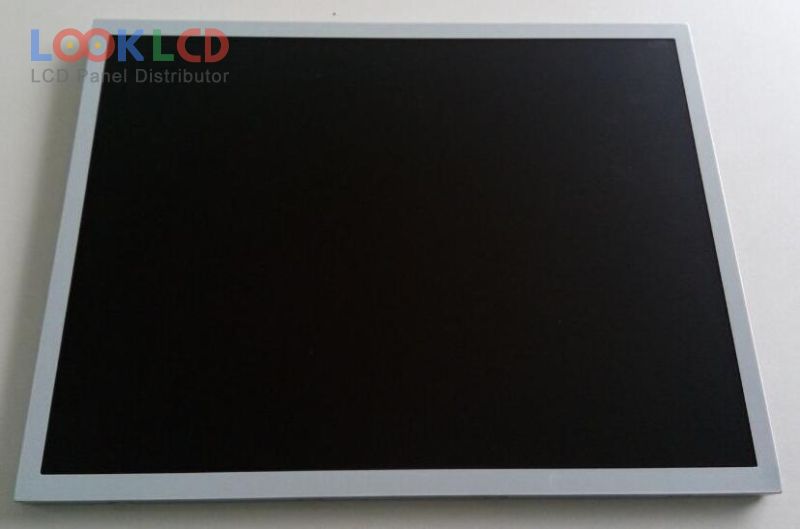

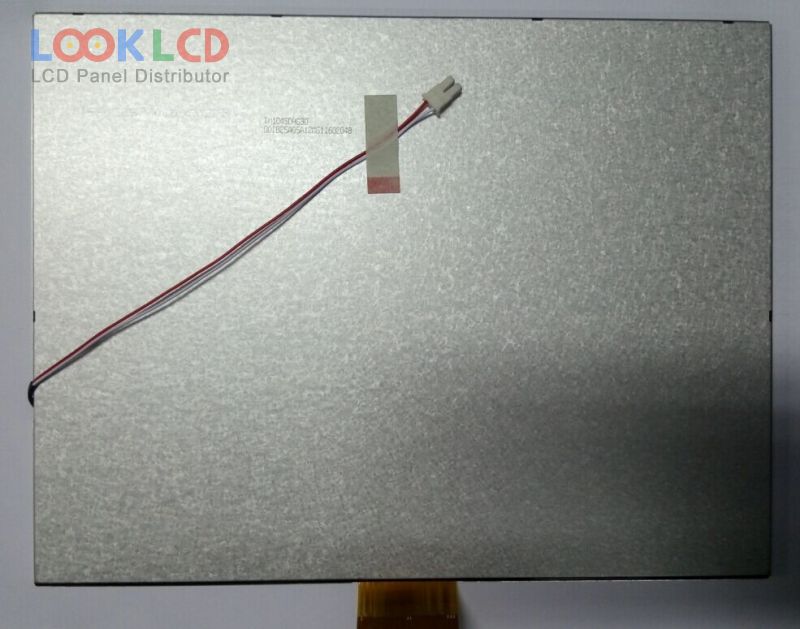

| PartNumber | TM104SDHG30 |
| Značka | Tianma |
| Velikost | 10.4 |
| aplikace | DPF |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 350 |
| CR | 500:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | TIANMA |
| panelový model | TM104SDHG30 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.4 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 211.2×158.4 mm |
| obrys | 228.4×175.4 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Doba odezvy | 10/15 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S12PWLEDEmbedded (LED Driver) |
| signálové rozhraní | Parallel RGB (1 ch, 6/8-bit), 60 pins |
| vstupní napětí | 3.3/11.0/21.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikace | DPF |
