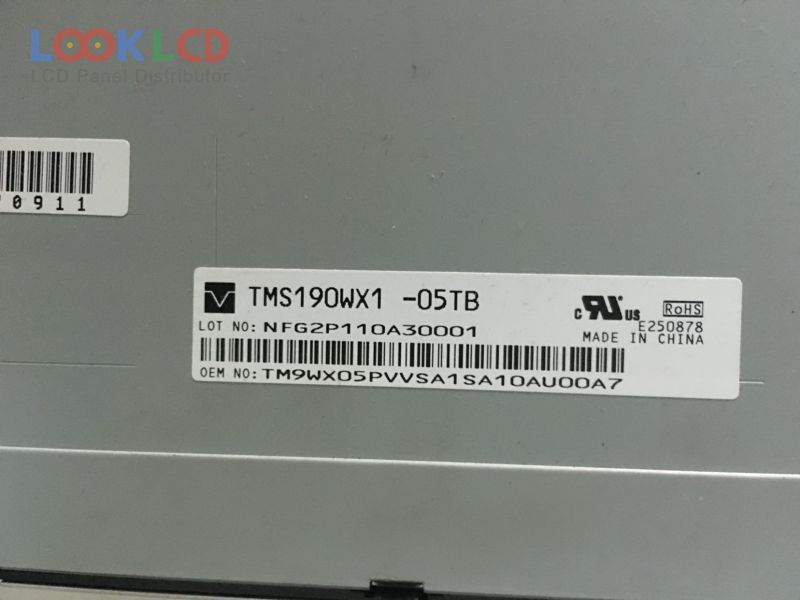

| PartNumber | TMS190WX1-05TB |
| Značka | Tianma |
| Velikost | 19.0 |
| aplikace | DMPC |
| Rozlišení | 1440×900 |
| Složení | LCM |
| Jas | 300 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | AVIC |
| panelový model | TMS190WX1-05TB |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 19.0 inch |
| rozlišení | 1440(RGB)×900 , WXGA+ |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 408.24×255.15 mm |
| obrys | 428×278×17 mm |
| povrch | Antiglare |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Doba odezvy | 1.3/3.7 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
