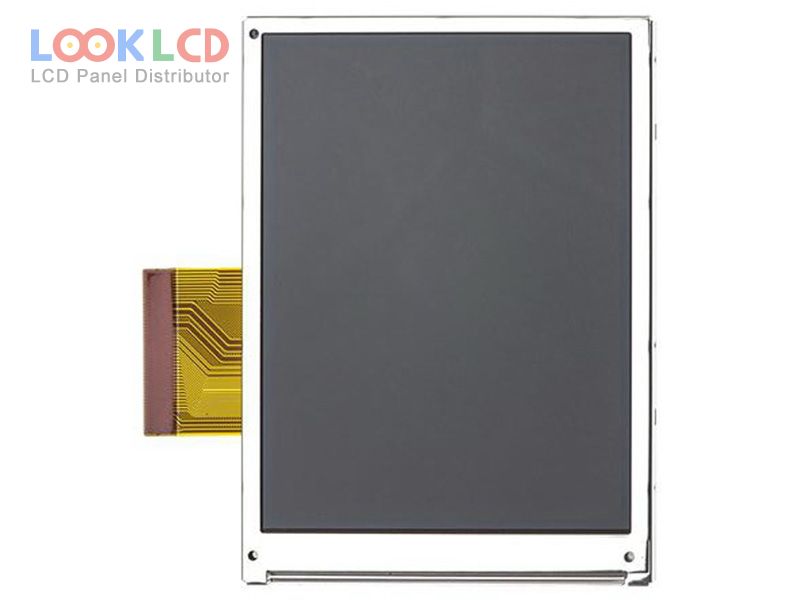

| PartNumber | TX09D40VM3CBA |
| Značka | KOE |
| Velikost | 3.5 |
| aplikace | HHP |
| Rozlišení | 240×320 |
| Složení | LCM |
| Jas | 430 |
| CR | 300:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | HITACHI |
| panelový model | TX09D40VM3CBA |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 240(RGB)×320 , QVGA |
| zobrazovací mód | TN, Normally White, TMR |
| aktivní oblast | 53.64×71.52 mm |
| obrys | 64×86×4.5 mm |
| povrch | |
| jas | 430 cd/m² (Typ.) |
| kontrastní poměr | 300 : 1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 80/50/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S2PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 50 pins |
| vstupní napětí | 3.0/8.45/16.5/-8.05V (Typ.)(VCC/VDH/VGH/VGL) |
| aplikace | HHP |
