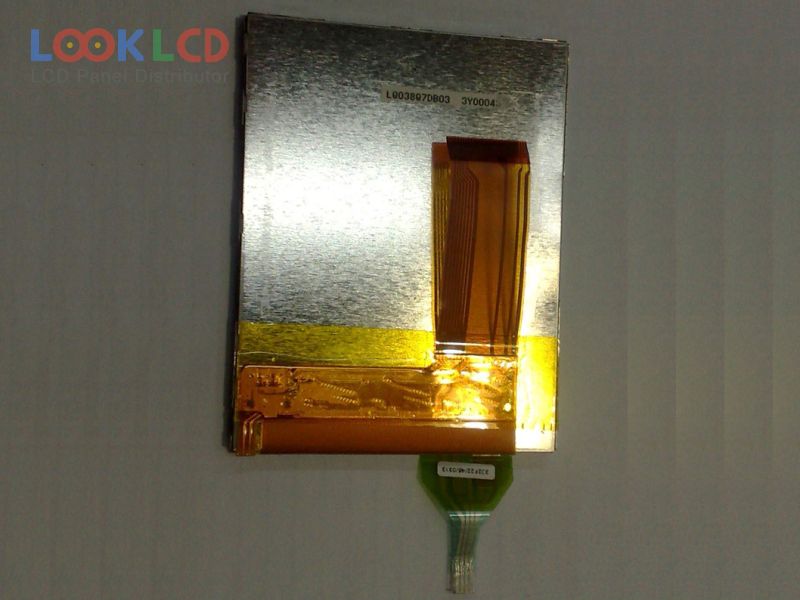

| PartNumber | LQ038Q7DB03 |
| Značka | SHARP |
| Velikost | 3.8 |
| aplikace | HHP |
| Rozlišení | 240×320 |
| Složení | LCM |
| Jas | 90 |
| CR | 75:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ038Q7DB03 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.8 inch |
| rozlišení | 240(RGB)×320 , QVGA |
| zobrazovací mód | TN, Normally White, Transflective |
| aktivní oblast | 57.6×76.8 mm |
| obrys | 69×88.6 mm |
| povrch | Hard coating (3H) |
| jas | 90 cd/m² (Typ.) |
| kontrastní poměr | 75:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 30/50 (Typ.)(Tr/Td) |
| úhel pohledu | 40/40/40/40 (Typ.)(CR≥2)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 61 pins |
| vstupní napětí | 5.0/3.3/15.0/-15.0V (Typ.)(VSHA/VSHD/VDD/VSS) |
| aplikace | HHP |
