| PartNumber | C070VW04 V6 |
| Značka | AUO |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 450 |
| CR | 600:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | AUO |
| panelový model | C070VW04 V6 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | AMVA, Normally Black, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 164.55×105.1×8.78 mm |
| povrch | Glare (Haze 0%), Antireflection |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193155% |
| Doba odezvy | 10/25 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S3PWLEDWithout Driver |

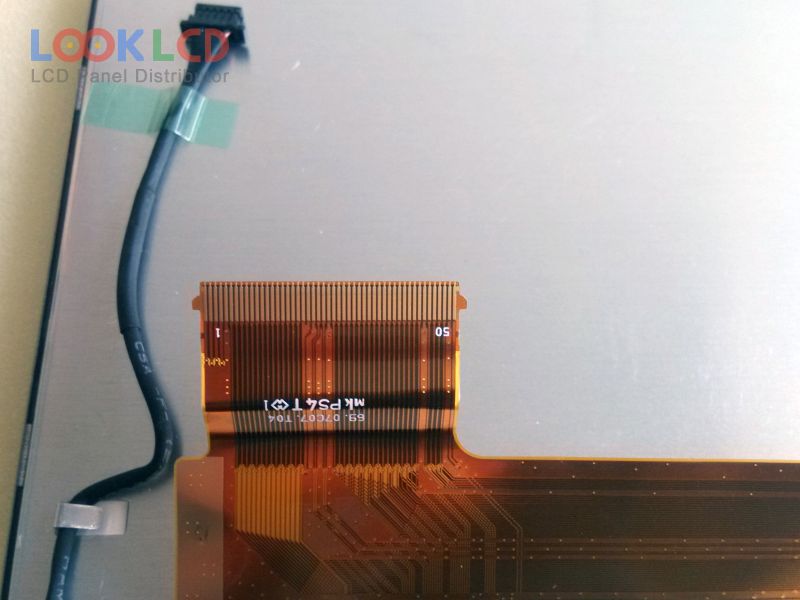

| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 50 pins |
| vstupní napětí | 3.3/12.5/15.0/-9.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikace | CNS |
