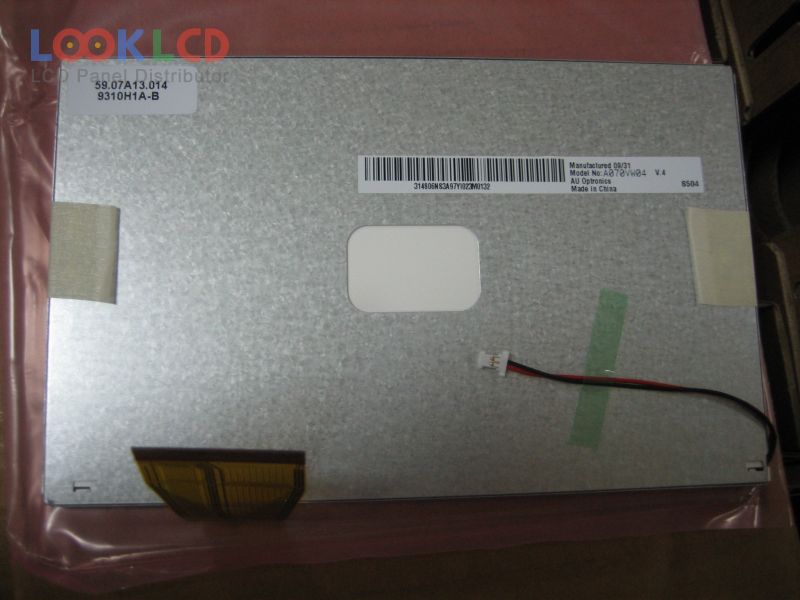

| PartNumber | A070VW04 V4 |
| Značka | AUO |
| Velikost | 7.0 |
| aplikace | MP4 |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 250 |
| CR | 300:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | AUO |
| panelový model | A070VW04 V4 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 164×103×5.4 mm |
| povrch | Antiglare |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 12/18 (Typ.)(Tr/Td) |
| úhel pohledu | 65/65/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 3S7PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit) + SPI, 60 pins |
| vstupní napětí | 3.3/11/18/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikace | MP4 |
| A070VTN03.0 | AUO | 7.0 | 800×480 |
| A070VW01 V1 | AUO | 7.0 | 800×480 |
| A070VW01 V2 | AUO | 7.0 | 800×480 |
| A070VW04 V0 | AUO | 7.0 | 800×480 |
| A070VW04 V3 | AUO | 7.0 | 800×480 |
| A070VW04 V4 | AUO | 7.0 | 800×480 |
| A070VW05 V0 | AUO | 7.0 | 800×480 |
| A070VW05 V1 | AUO | 7.0 | 800×480 |
| A070VW05 V2 | AUO | 7.0 | 800×480 |
| A070VW08 V2 | AUO | 7.0 | 800×480 |
| AT070TN83 | Innolux | 7.0 | 800×480 |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.X | Innolux | 7.0 | 800×480 |
| AT070TNA2 | Innolux | 7.0 | 1024×600 |
| BA070WS1-100 | BOE | 7.0 | 1024×600 |
| CLAA070LC0ECT | CPT | 7.0 | 800×480 |
| CLAA070NP01HXG | CPT | 7.0 | 1024×600 |
| LMS700JF04-0 | Samsung | 7.0 | 1024×600 |
| LW700AT9003 | Innolux | 7.0 | 800×480 |
| TM070DDH03 | Tianma | 7.0 | 1024×600 |
