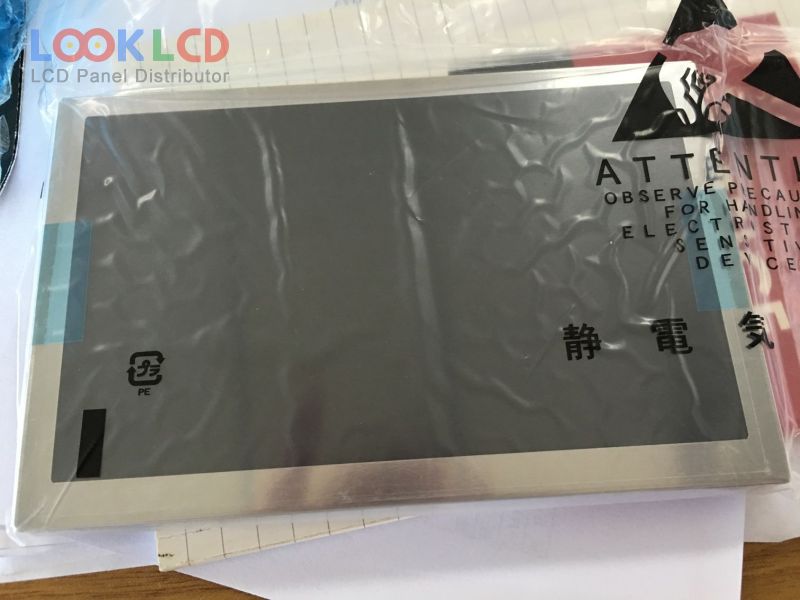

| PartNumber | AA070MC11 |
| Značka | Mitsubishi |
| Velikost | 7.0 |
| aplikace | IA |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 1300 |
| CR | 1000:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | Mitsubishi |
| panelový model | AA070MC11 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 169.8×109.7×9.4 mm |
| povrch | Clear, Hard coating (3H) |
| jas | 1300 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 8-bit), CIE193150% |
| Doba odezvy | 12/12 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 stringsWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6/8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
