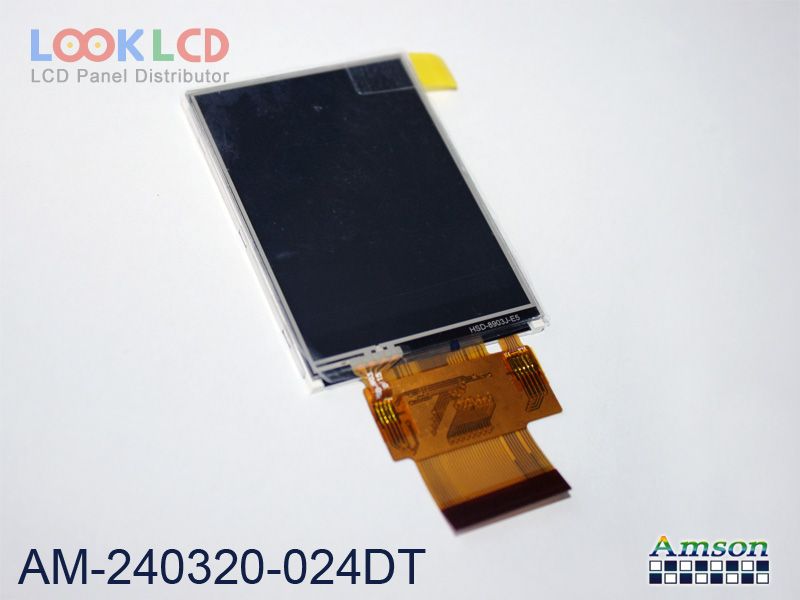

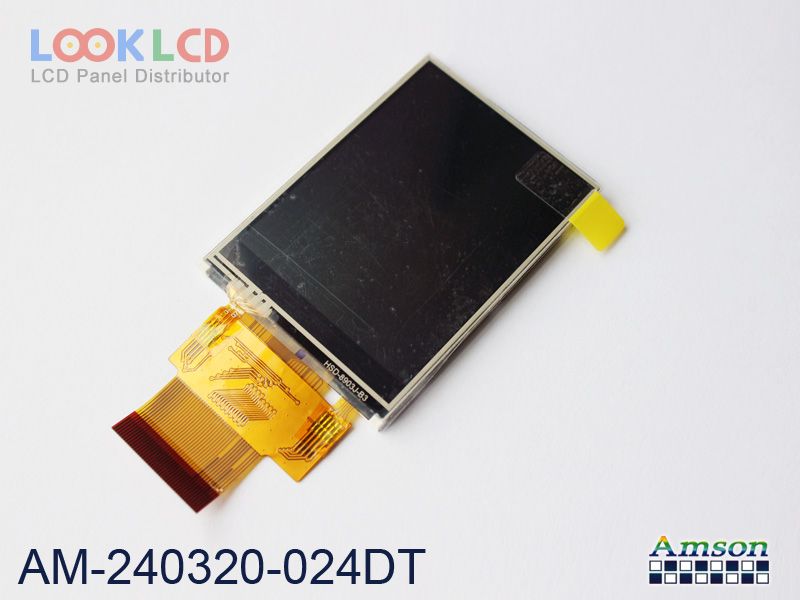

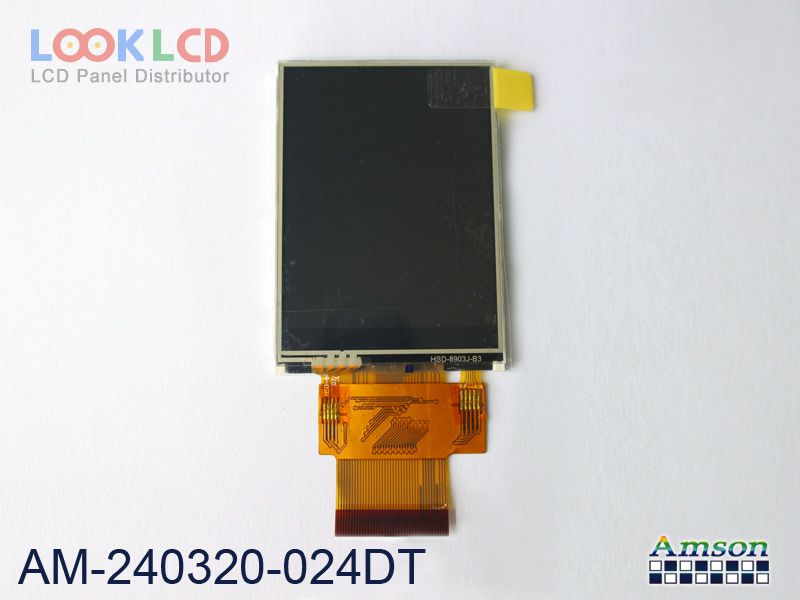

| PartNumber | AM-240320-024DT |
| Značka | Other |
| Velikost | 2.4 |
| aplikace | HHP |
| Rozlišení | 240×320 |
| Složení | LCM |
| Jas | |
| CR | |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | CPU |
| značka panelu | Amson |
| panelový model | AM-240320-024DT |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 2.4 inch |
| rozlišení | 240(RGB)×320 , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 36.72×48.96 mm |
| obrys | 42.72×60.26×3.8 mm |
| povrch | |
| jas | |
| kontrastní poměr | |
| zobrazit barvy | 262K |
| Doba odezvy | |
| úhel pohledu | |
| typ lampy | 4 stringsWLEDWithout Driver |
| signálové rozhraní | 8/16-bit 8080 parallel, 40 pins |
| vstupní napětí | 2.8/2.8V (Typ.)(IOVCC/VCI) |
| aplikace | HHP |
