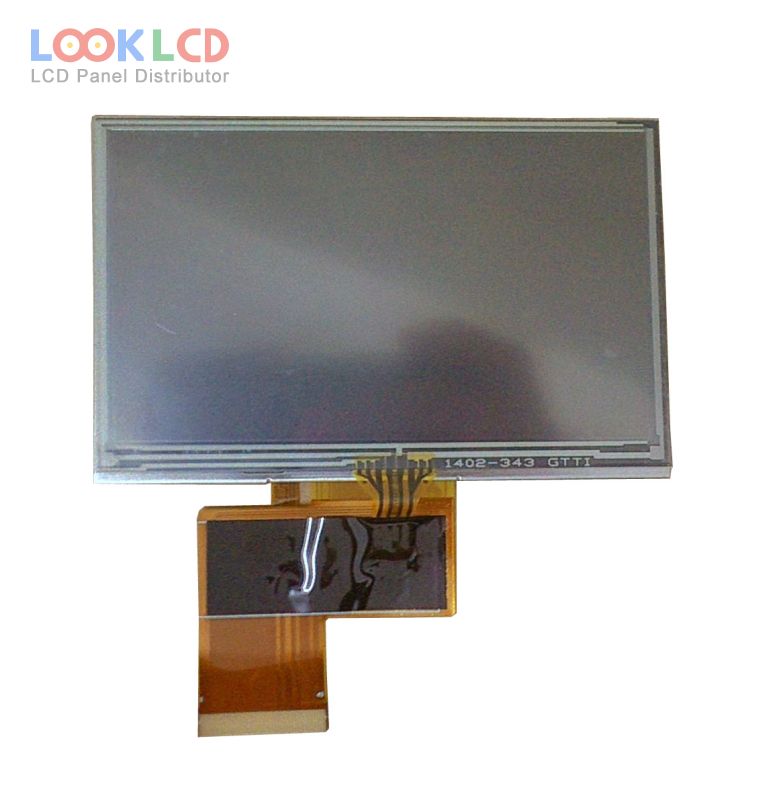

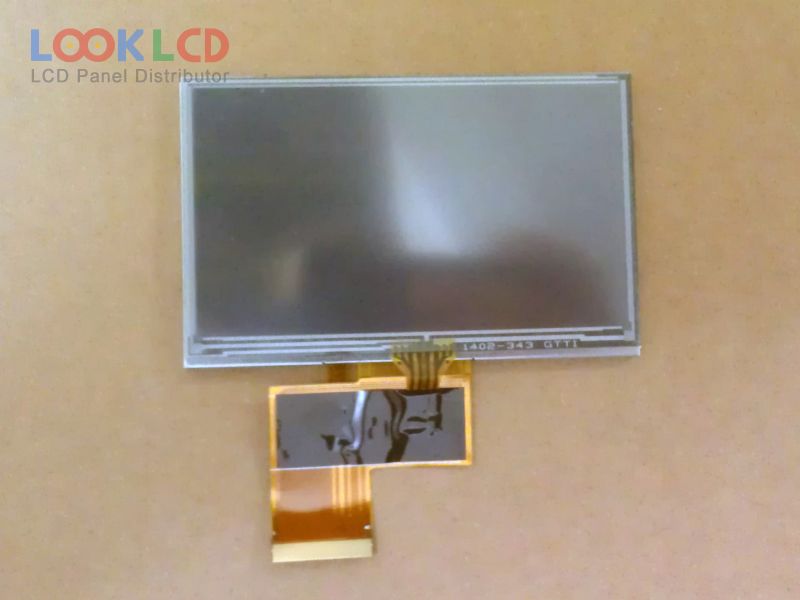

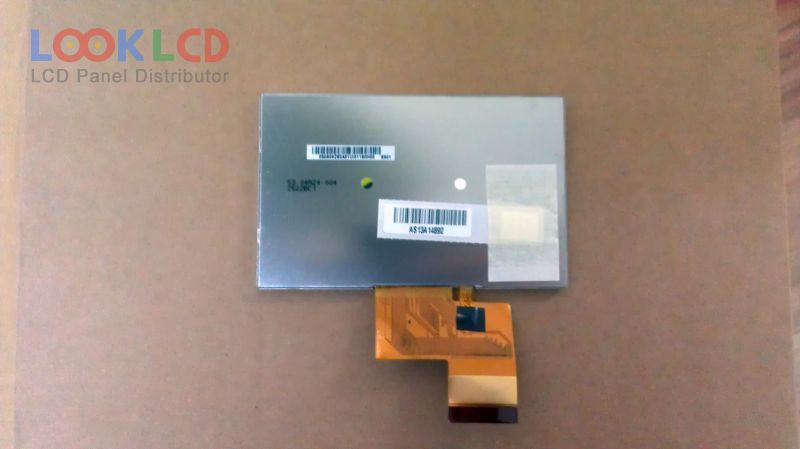

| PartNumber | G043FTT01.0 |
| Značka | AUO |
| Velikost | 4.3 |
| aplikace | HHP |
| Rozlišení | 480×272 |
| Složení | LCM |
| Jas | 400 |
| CR | 400:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | AUO |
| panelový model | G043FTT01.0 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 4.3 inch |
| rozlišení | 480(RGB)×272 , WQVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 95.04×53.856 mm |
| obrys | 105.5×67.2 mm |
| povrch | Antiglare (Haze 8%), Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193150% |
| Doba odezvy | 15/20 (Typ.)(Tr/Td) |
| úhel pohledu | 65/65/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 9S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit), 45 pins |
| vstupní napětí | 3.3/3.3V (Typ.)(VDD/VDDIO) |
| aplikace | HHP |
