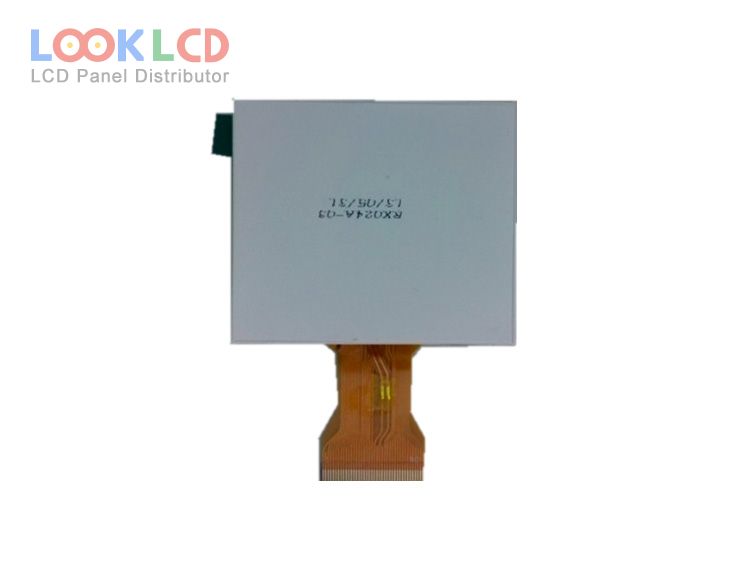

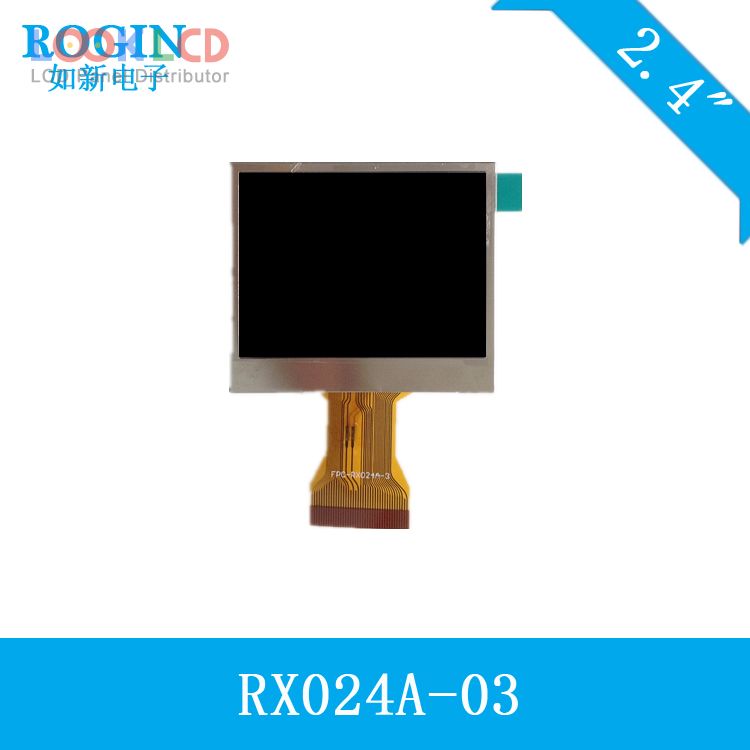

| PartNumber | RX024A-03 |
| Značka | ROGIN |
| Velikost | 2.4 |
| aplikace | IA |
| Rozlišení | 480×234 |
| Složení | LCM |
| Jas | 200 |
| CR | 400:1 |
| Barvy | |
| Podsvícení | WLED |
| Rozhraní | Serial RGB |
| značka panelu | ROGIN |
| panelový model | RX024A-03 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 2.4 inch |
| rozlišení | 480×234 |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 48×35.685 mm |
| obrys | 54.8×47.15×2.9 mm |
| povrch | |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | , CIE193145% |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 65/65/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 2 pcsWLEDWithout Driver |
| signálové rozhraní | Serial RGB (8-bit) + SPI, 40 pins |
| vstupní napětí | 3.3/3.3V (Typ.)(VCC/IOVCC) |
| aplikace | IA |
