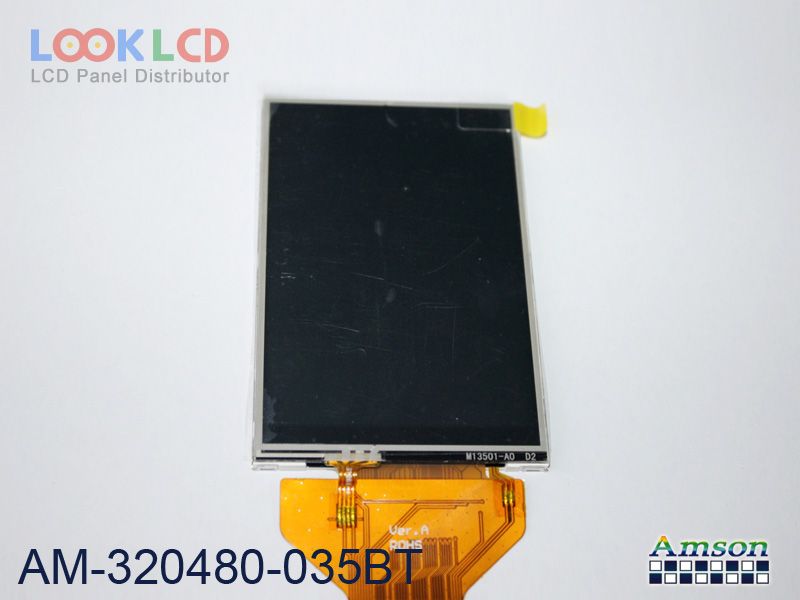

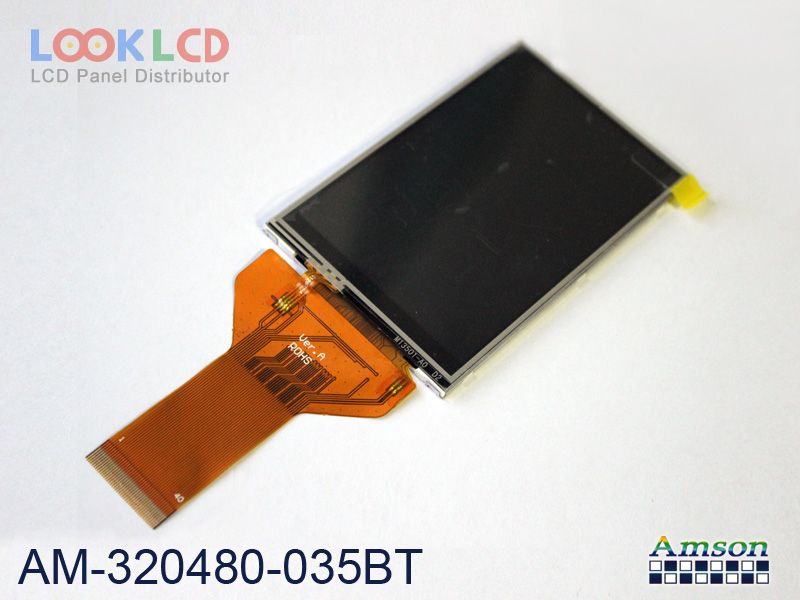

| PartNumber | AM-320480-035BT |
| Značka | Other |
| Velikost | 3.5 |
| aplikace | HHP |
| Rozlišení | 320×480 |
| Složení | LCM |
| Jas | |
| CR | |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | CPU |
| značka panelu | Amson |
| panelový model | AM-320480-035BT |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 320(RGB)×480 , HVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 48.96×73.44 mm |
| obrys | 55.66×85.04×3.7 mm |
| povrch | |
| jas | |
| kontrastní poměr | |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | |
| úhel pohledu | |
| typ lampy | WLEDWithout Driver |
| signálové rozhraní | 8/16-bit 8080 parallel, 40 pins |
| vstupní napětí | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| aplikace | HHP |
| AM-320480-035BT | Other | 3.5 | 320×480 |
| H345VW01 V0 | AUO | 3.5 | 480×800 |
| LQ035LC111 | Innolux | 3.5 | 320×240 |
| LQ035Q1DH01 | SHARP | 3.5 | 320×240 |
| LQ035Q7DH02 | SHARP | 3.5 | 240×320 |
| LS035Y8DX02A | SHARP | 3.5 | 480×800 |
| LTM035A776B | TOSHIBA | 3.5 | 240×320 |
| TM035PDZ00 | Tianma | 3.5 | 320×480 |
| TM035PDZ15 | Tianma | 3.5 | 320×480 |
| TX09D200VM0BAA | KOE | 3.5 | 240×320 |
| 24QVF2H | SII | 2.4 | 240×320 |
| 24QVW1H | SII | 2.4 | 240×320 |
| 28QVF1J | SII | 2.8 | 240×320 |
| AM-320240-020A | Other | 2.0 | 320×240 |
| COM35T3112DTR | ORTUSTECH | 3.5 | 240×320 |
| LQ030B7DD01 | SHARP | 3.0 | 320×320 |
| LQ039Q2DS51 | SHARP | 3.9 | 320×240 |
| LS024Q3UX05 | SHARP | 2.4 | 240×320 |
| LS024Q3UX12(G) | SHARP | 2.4 | 320×240 |
| TM035WBHG01 | Tianma | 3.5 | 480×640 |
