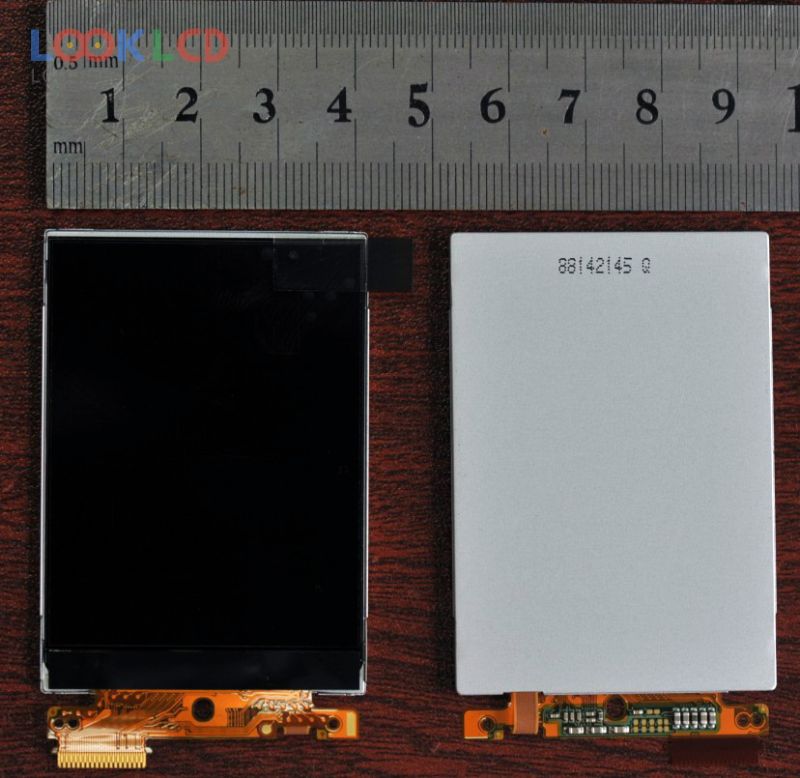

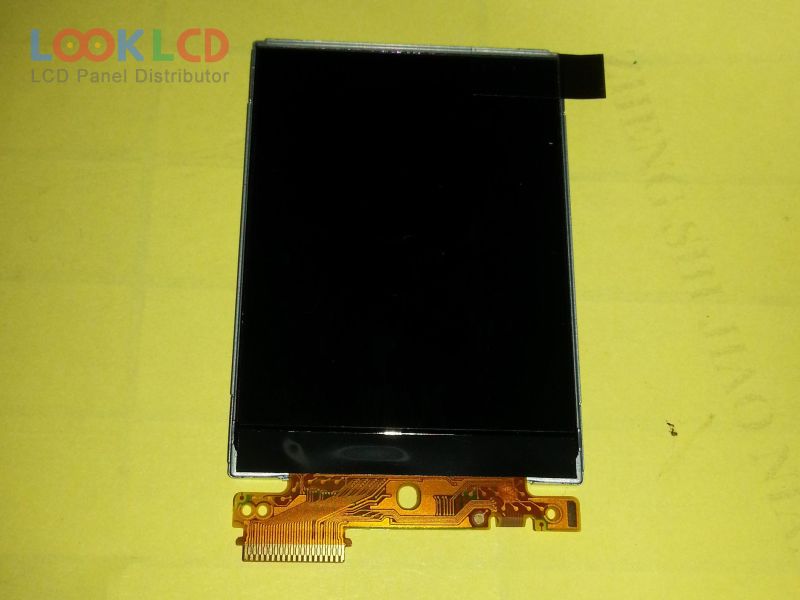

| PartNumber | LS024Q3UX05 |
| Značka | SHARP |
| Velikost | 2.4 |
| aplikace | HHP |
| Rozlišení | 240×320 |
| Složení | LCM |
| Jas | 500 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | CPU |
| značka panelu | SHARP |
| panelový model | LS024Q3UX05 |
| typ panelu | CG-Silicon , LCM |
| velikost panelu | 2.4 inch |
| rozlišení | 240(RGB)×320 , QVGA |
| zobrazovací mód | Normally Black, Transmissive |
| aktivní oblast | 36.72×48.96 mm |
| obrys | 42.2×69.4 mm |
| povrch | |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 262K , CIE193170% |
| Doba odezvy | 11/24 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 1S5PWLEDWithout Driver |
| signálové rozhraní | CPU, 37 pins |
| vstupní napětí | 2.62/2.62V (Typ.)(VDDIO/VDC) |
| aplikace | HHP |
