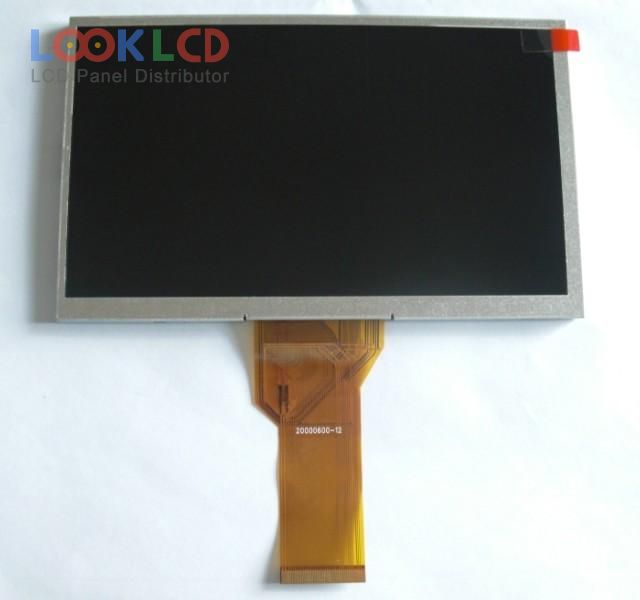

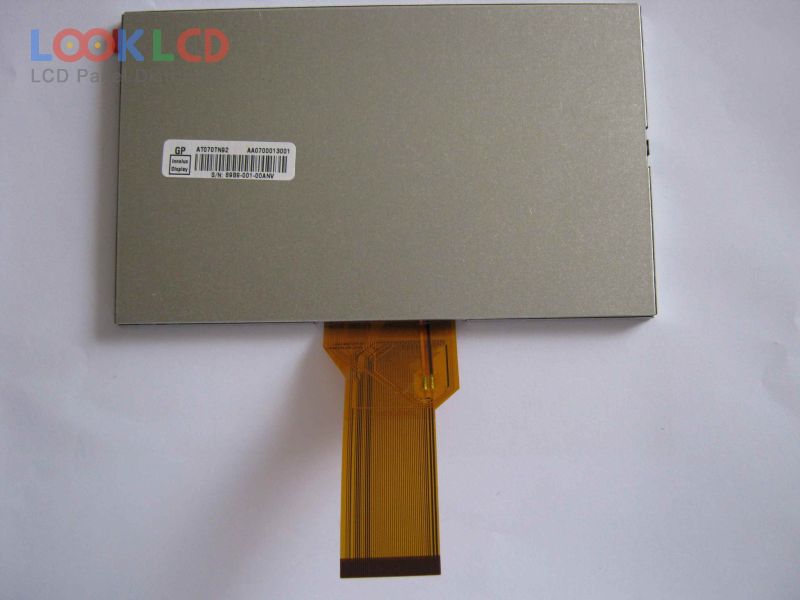

| PartNumber | AT070TN92 V.1 |
| Značka | Innolux |
| Velikost | 7.0 |
| aplikace | MP4 |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 250 |
| CR | 500:1 |
| Barvy | 262K/16.2M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | INNOLUX |
| panelový model | AT070TN92 V.1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 154.08×85.92 mm |
| obrys | 164.9×100×6 mm |
| povrch | Antiglare |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K/16.2M (6-bit / 6-bit + Dithering) |
| Doba odezvy | 10/15 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S9PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6/8-bit), 50 pins |
| vstupní napětí | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikace | MP4 |
