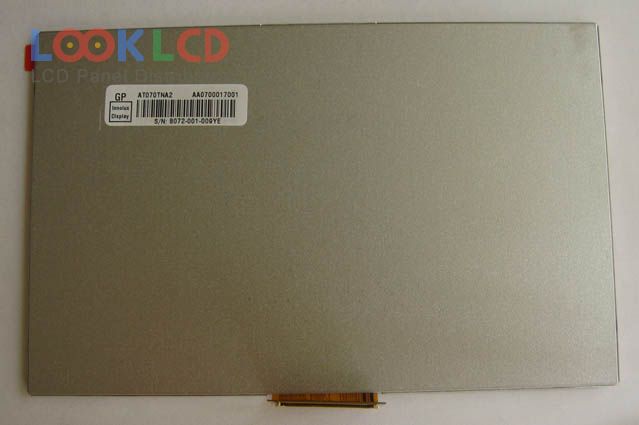

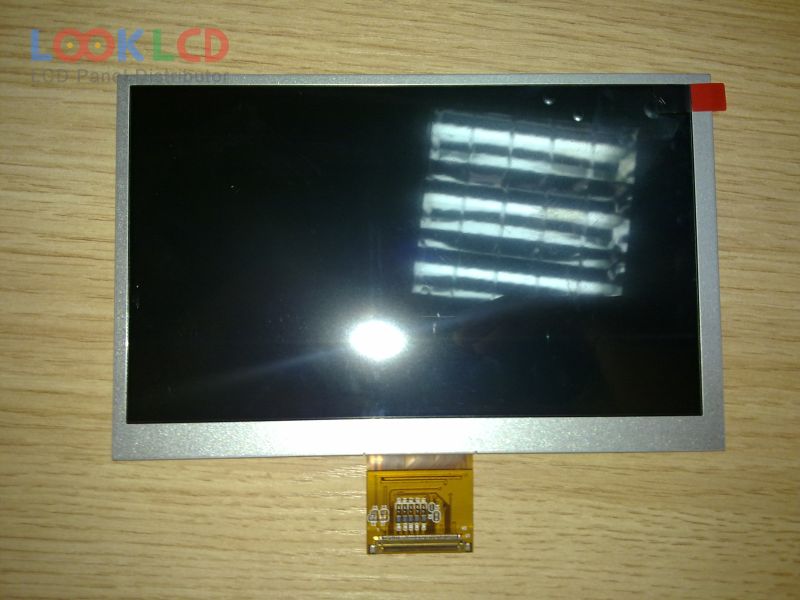

| PartNumber | AT070TNA2 |
| Značka | Innolux |
| Velikost | 7.0 |
| aplikace | MP4 |
| Rozlišení | 1024×600 |
| Složení | LCM |
| Jas | 250 |
| CR | 700:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | AT070TNA2 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 1024(RGB)×600 , WSVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 153.6×90 mm |
| obrys | 165.75×105.39×3.7 mm |
| povrch | Antiglare |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 700:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Doba odezvy | 10/10 (Typ.)(Tr/Td) |
| úhel pohledu | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S6PWLEDWithout Driver |

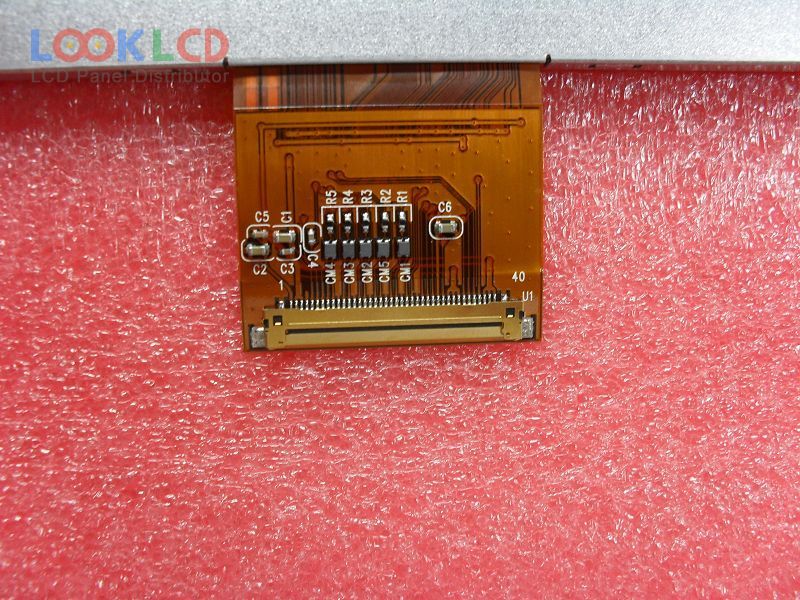

| signálové rozhraní | LVDS (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikace | MP4 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN82 | Innolux | 7.0 | 800×480 |
| AT070TN82 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 TP | Innolux | 7.0 | 800×480 |
| AT070TN84 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN90 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 TP | Innolux | 7.0 | 800×480 |
| AT070TN92 V.4 | Innolux | 7.0 | 800×480 |
| AT070TNA2 | Innolux | 7.0 | 1024×600 |
| AT070TN93 V.2 | Innolux | 7.0 | 800×480 |
| CLAA070ND26CW | CPT | 7.0 | 1024×600 |
| DLC0700MIG | Other | 7.0 | 800×480 |
| LMS430HF11-003 | Samsung | 4.3 | 480×272 |
| LMS700KF07 | Samsung | 7.0 | 800×480 |
| LMS700KF15 | Samsung | 7.0 | 800×480 |
| LQ043T3DX03 | SHARP | 4.3 | 480×272 |
| LW700AT9008 | Innolux | 7.0 | 800×480 |
| LW700AT9009 | Innolux | 7.0 | 800×480 |
| Q070LRE-L81 | Innolux | 7.0 | 1024×600 |
