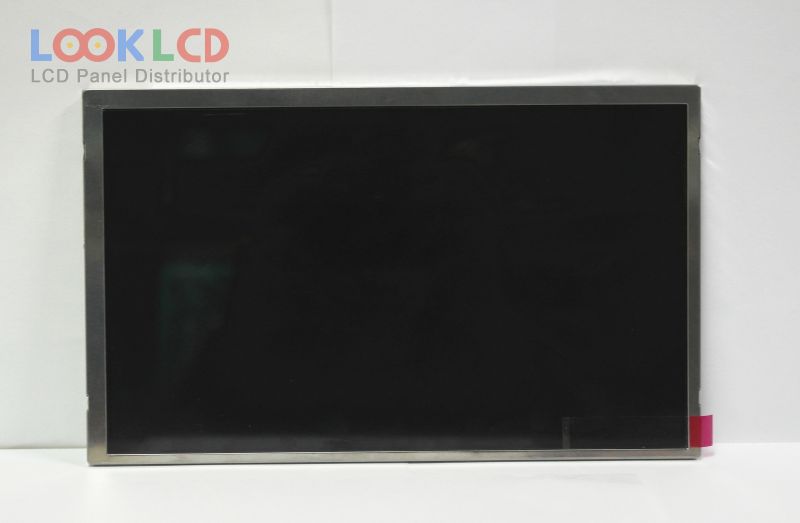

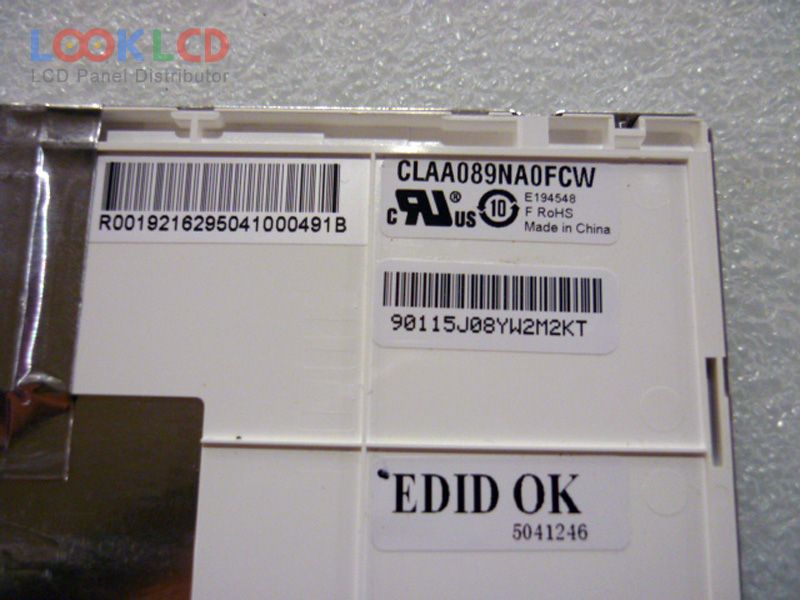

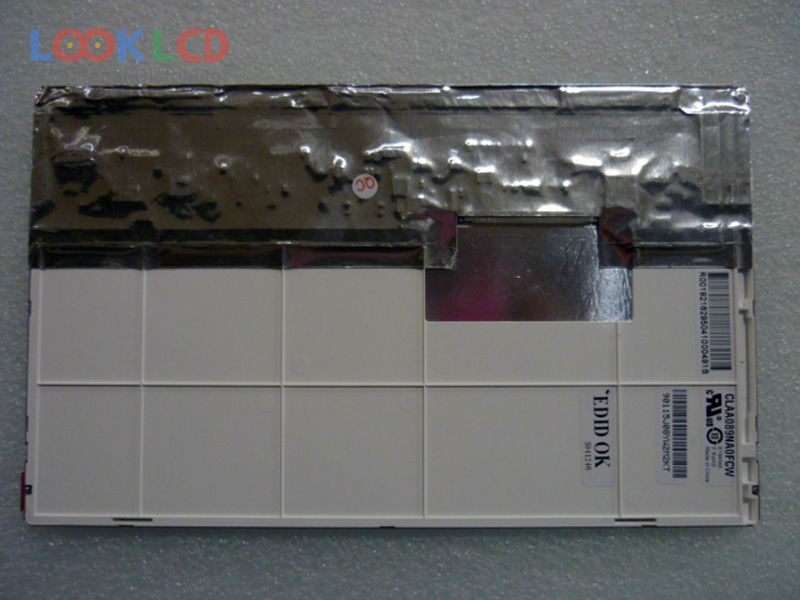

| PartNumber | CLAA089NA0FCW |
| Značka | CPT |
| Velikost | 8.9 |
| aplikace | MP4 |
| Rozlišení | 1024×600 |
| Složení | LCM |
| Jas | 300 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CPT |
| panelový model | CLAA089NA0FCW |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.9 inch |
| rozlišení | 1024(RGB)×600 , WSVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 195.072×114.3 mm |
| obrys | 210×127.8×5.5 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 20 (Typ.)(Tr+Td) |
| úhel pohledu | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| rohs: | |
| aplikace | MP4 |
| CLAA080LA0ACW | CPT | 8.0 | 800×480 |
| CLAA080LA0BCW | CPT | 8.0 | 800×480 |
| CLAA080LG01CW | CPT | 8.0 | 800×480 |
| CLAA080LJ01CW | CPT | 8.0 | 800×480 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| CLAA080NA01 CW | CPT | 8.0 | 1024×600 |
| CLAA080WQ02 XN | CPT | 8.0 | 800×1280 |
| CLAA080WQ05 | CPT | 8.0 | 800×1280 |
| CLAA080XA01BW | CPT | 8.0 | 1024×768 |
| CLAA089NA0BCW | CPT | 8.9 | 1024×600 |
| AT070TN93 | Innolux | 7.0 | 800×480 |
| CLAA070ND22CW | CPT | 7.0 | 1024×600 |
| CLAA070ND30CW | CPT | 7.0 | 1024×600 |
| HSD089IFW1-B00 | HannStar | 8.9 | 1024×600 |
| HV070WS1-100 | HYDIS | 7.0 | 1024×600 |
| LB070WV6-TD06 | LG Display | 7.0 | 800×480 |
| LTP700WV-F01 | Samsung | 7.0 | 800×480 |
| LW700AT9008 | Innolux | 7.0 | 800×480 |
| N070LGE-L21 | Innolux | 7.0 | 1024×600 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
