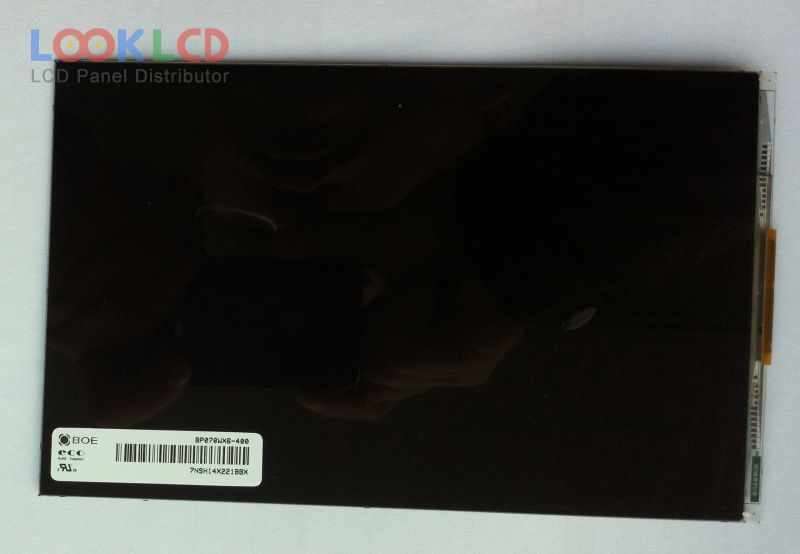

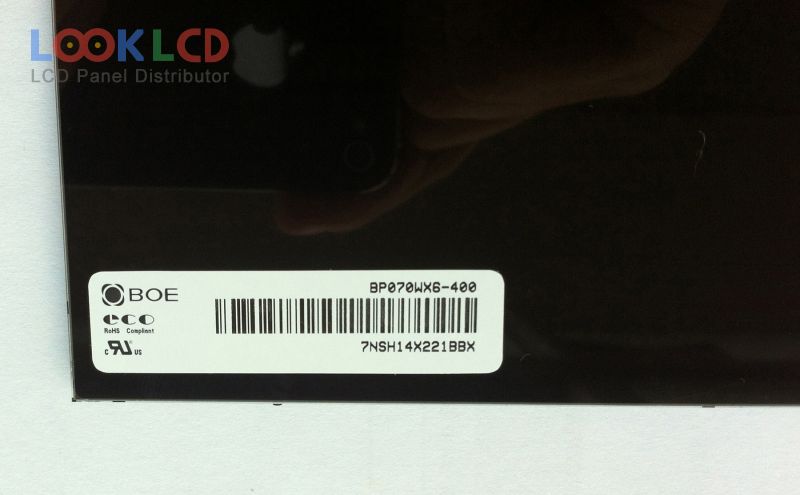

| PartNumber | BP070WX6-400 |
| Značka | BOE |
| Velikost | 7.0 |
| aplikace | PAD |
| Rozlišení | 800×1280 |
| Složení | CELL |
| Jas | 0 |
| CR | 850:1 |
| Barvy | 16.7M |
| Podsvícení | No B/L |
| Rozhraní | MIPI |
| značka panelu | BOE |
| panelový model | BP070WX6-400 |
| typ panelu | a-Si TFT-LCD , CELL |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×1280 , WXGA |
| zobrazovací mód | ADS, Normally Black, Transmissive |
| aktivní oblast | 94.2×150.72 mm |
| obrys | 98.7×159.93 mm |
| povrch | Antiglare (Haze 25%) |
| hloubka skla | 0.30+0.30 mm |
| propustnost | 4.8% (Typ.)(with Polarizer) |
| kontrastní poměr | 850:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193155% |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| řidič ic | COG Built-in S6D7AA0 |
| aplikace | PAD |
