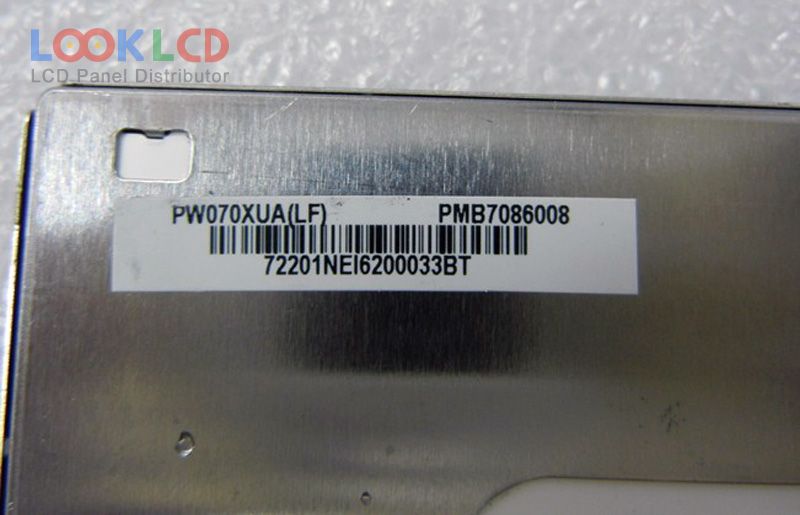

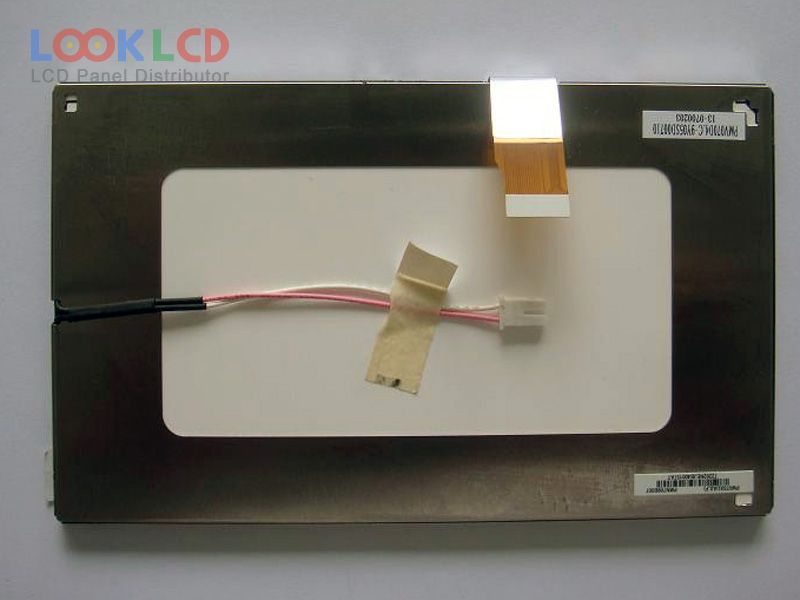

| PartNumber | PW070XUA |
| Značka | E Ink |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 480×234 |
| Složení | LCM |
| Jas | 400 |
| CR | 350:1 |
| Barvy | Full color |
| Podsvícení | CCFL |
| Rozhraní | Analog |
| značka panelu | PVI |
| panelový model | PW070XUA |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 480(RGB)×234 |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 154.08×86.58 mm |
| obrys | 164.9×100×6.1 mm |
| povrch | Antiglare, Hard coating |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 350:1 (Typ.) |
| zobrazit barvy | Full color |
| Doba odezvy | 10/20 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/35/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | TFT Specific Analog RGB, 26 pins |
| vstupní napětí | 3.3/3.3/5.0/15.0/-12.0V (Typ.)(VCC1/VCC2/AVDD/VGH/VGL) |
| aplikace | CNS |
