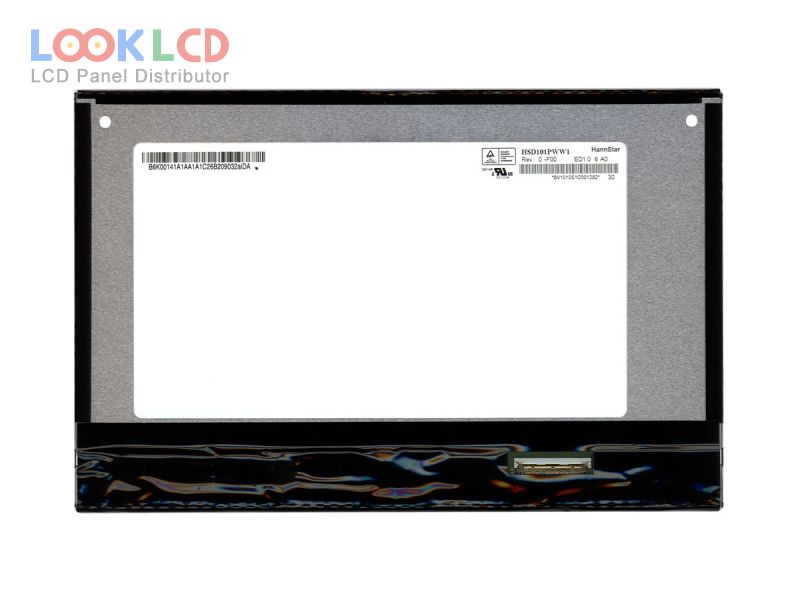

| PartNumber | HSD101PWW1-F00 |
| Značka | HannStar |
| Velikost | 10.1 |
| aplikace | PAD |
| Rozlišení | 1280×800 |
| Složení | LCM |
| Jas | |
| CR | 800:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | HannStar |
| panelový model | HSD101PWW1-F00 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | HS-IPS, Normally Black, Transmissive |
| aktivní oblast | 216.96×135.6 mm |
| povrch | |
| jas | |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit) |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PAD |
