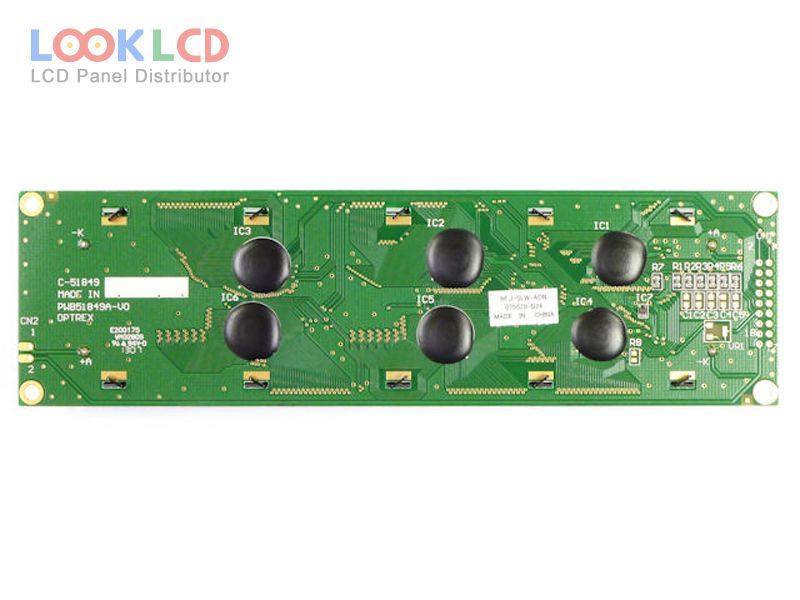

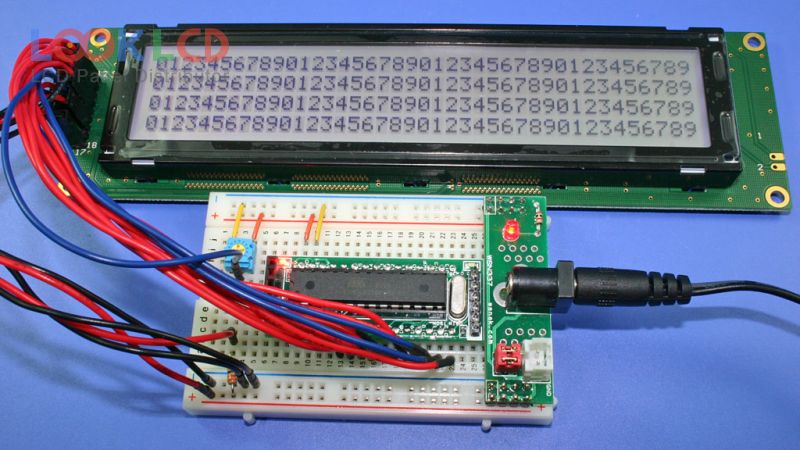

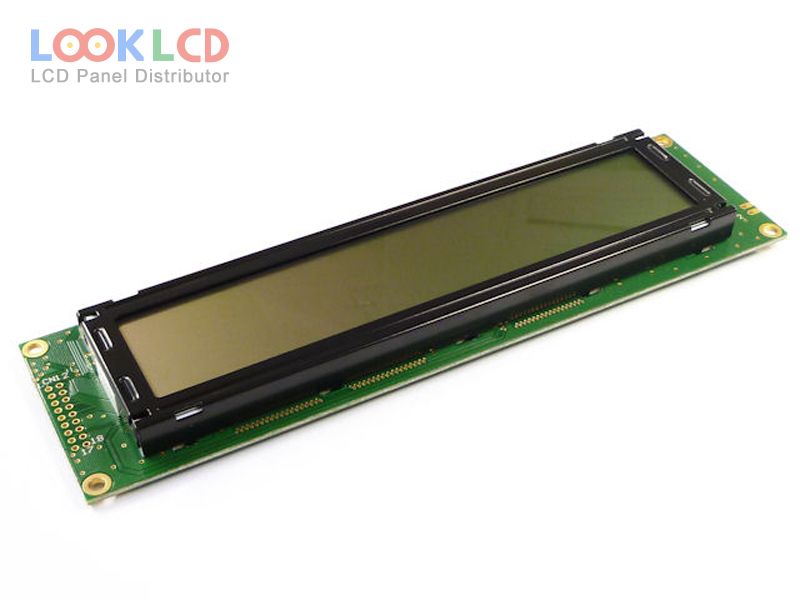

| PartNumber | C-51849NFJ-SLW-ADN |
| Značka | Kyocera |
| Velikost | 5.6 |
| aplikace | |
| Rozlišení | 40×4 |
| Složení | LCM |
| Jas | |
| CR | 5:1 |
| Barvy | Monochrome |
| Podsvícení | WLED |
| Rozhraní | CPU |
| značka panelu | Kyocera |
| panelový model | C-51849NFJ-SLW-ADN |
| typ panelu | FSTN-LCD , LCM |
| velikost panelu | 5.6 inch |
| formát zobrazení | 40 characters × 4 lines |
| zobrazovací mód | STN, Black/White (Positive), Transflective |
| zobrazit písma | 5×8 dots |
| velikost postavy | 2.78×4.89 mm |
| rozteč znaků | 3.53×6.09 mm |
| aktivní oblast | 140.45×23.16 mm |
| oblast rámu | 147.0×29.5 mm |
| obrys | 190×54×14.6 mm |
| jas | |
| kontrastní poměr | 5:1 (Typ.)(Transmissive) |
| zobrazit barvy | Monochrome (1-bit) |
| Doba odezvy | 80/130 (Typ.)(Tr/Td) |
| typ lampy | 3 pcsWLEDWithout Driver |
| signálové rozhraní | 8-bit parallel, 18 pins |
| vstupní napětí | 5.0V (Typ.) |
