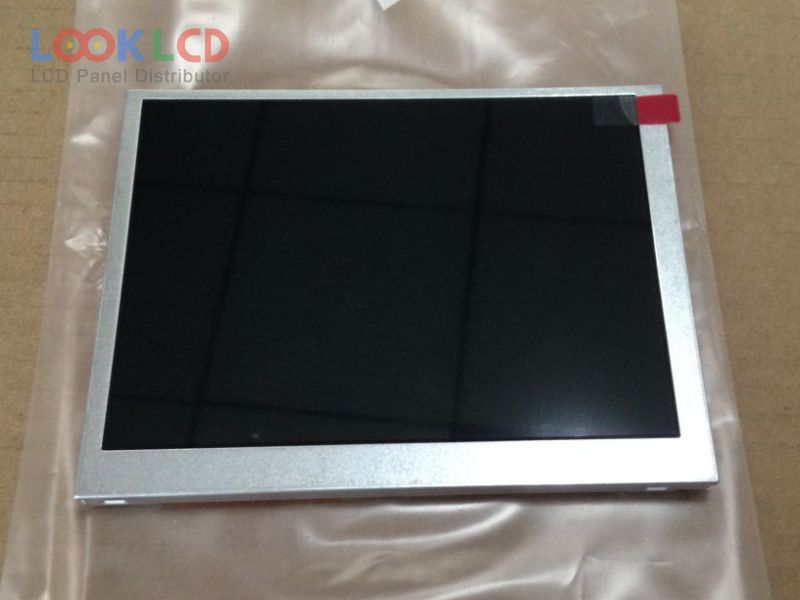

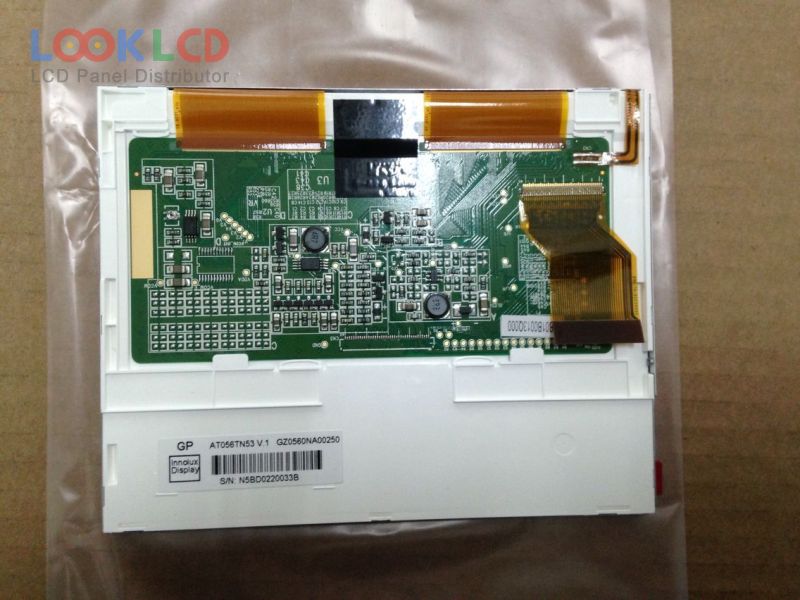

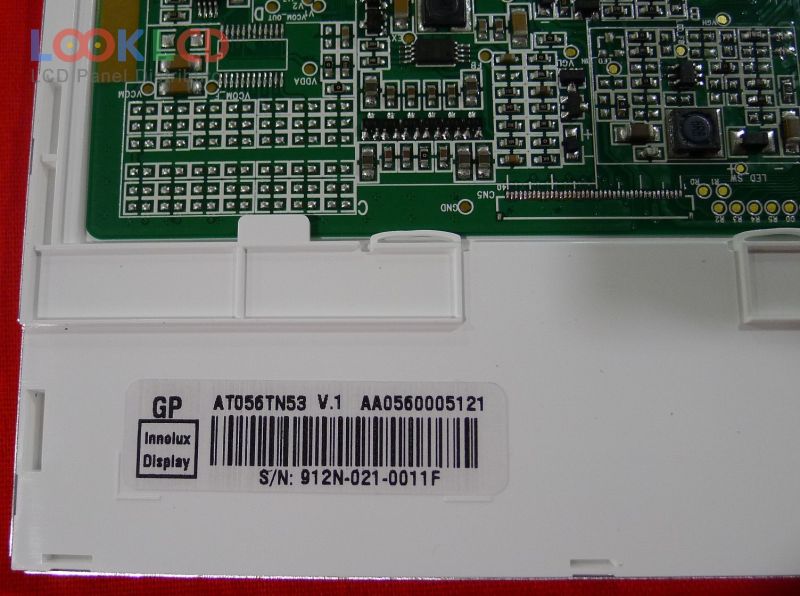

| PartNumber | AT056TN53 V.1 |
| Značka | Innolux |
| Velikost | 5.6 |
| aplikace | DPF |
| Rozlišení | 640×480 |
| Složení | LCM |
| Jas | 350 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | INNOLUX |
| panelový model | AT056TN53 V.1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.6 inch |
| rozlišení | 640(RGB)×480 , VGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 112.896×84.672 mm |
| obrys | 126.5×100 mm |
| povrch | Antiglare |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193150% |
| Doba odezvy | 10/15 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.)(VCC) |
| rohs: | |
| aplikace | DPF |
| AT056TN03 | Innolux | 5.6 | 320×234 |
| AT056TN04 V.6 | Innolux | 5.6 | 320×234 |
| AT056TN52 | Innolux | 5.6 | 640×480 |
| AT056TN52 V.2 | Innolux | 5.6 | 640×480 |
| AT056TN52 V.3 | Innolux | 5.6 | 640×480 |
| AT056TN52 V.4 | Innolux | 5.6 | 640×480 |
| AT056TN52 V.5 | Innolux | 5.6 | 640×480 |
| AT056TN53 V.1 | Innolux | 5.6 | 640×480 |
| LTD056ET0T | TOSHIBA | 5.6 | 1024×600 |
| TM056KDH01 | Tianma | 5.6 | 320×234 |
| A080SN01 V0 | AUO | 8.0 | 800×600 |
| A085FW01 V5 | AUO | 8.5 | 480×234 |
| HSD070ISN1-D00 | HannStar | 7.0 | 800×600 |
| HSD090ICW1-A00 | HannStar | 9.0 | 640×234 |
| HSD101PFW1-A01 | HannStar | 10.1 | 1024×576 |
| HSD101PFW2-B01 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| LW850AT9301 | Innolux | 8.5 | 800×480 |
| PA079DS4 | E Ink | 7.9 | 480×234 |
| TM060RDH03 | Tianma | 6.0 | 800×480 |
