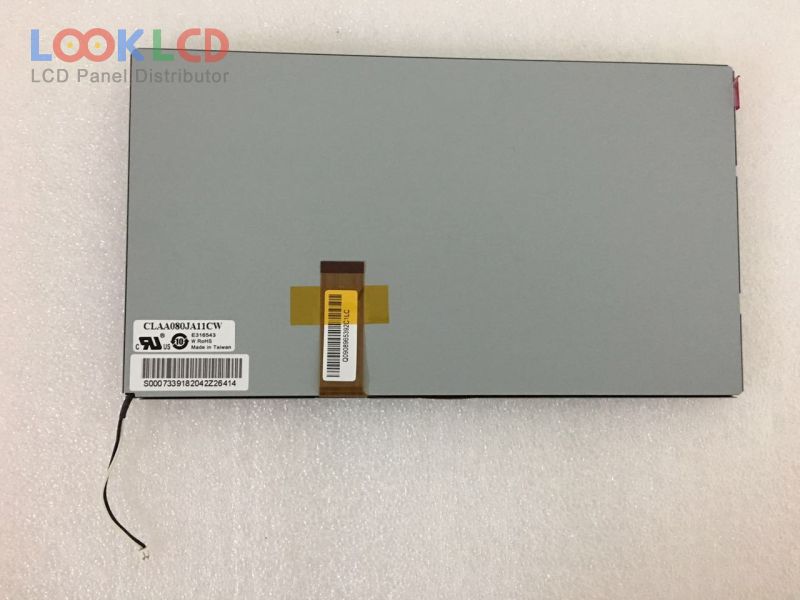

| PartNumber | CLAA080JA11CW |
| Značka | CPT |
| Velikost | 8.0 |
| aplikace | CNS |
| Rozlišení | 480×220 |
| Složení | LCM |
| Jas | 250 |
| CR | 400:1 |
| Barvy | Full color |
| Podsvícení | WLED |
| Rozhraní | Analog |
| značka panelu | CPT |
| panelový model | CLAA080JA11CW |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.0 inch |
| rozlišení | 480(RGB)×220 |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 180.72×94.27 mm |
| obrys | 193×108.3 mm |
| povrch | Antiglare |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | Full color , CIE193145% |
| Doba odezvy | 30 (Tr+Td) |
| úhel pohledu | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 3S7PWLED |
| signálové rozhraní | TFT Specific Analog RGB, 26 pins |
| vstupní napětí | 5/5/18/-6V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| aplikace | CNS |
