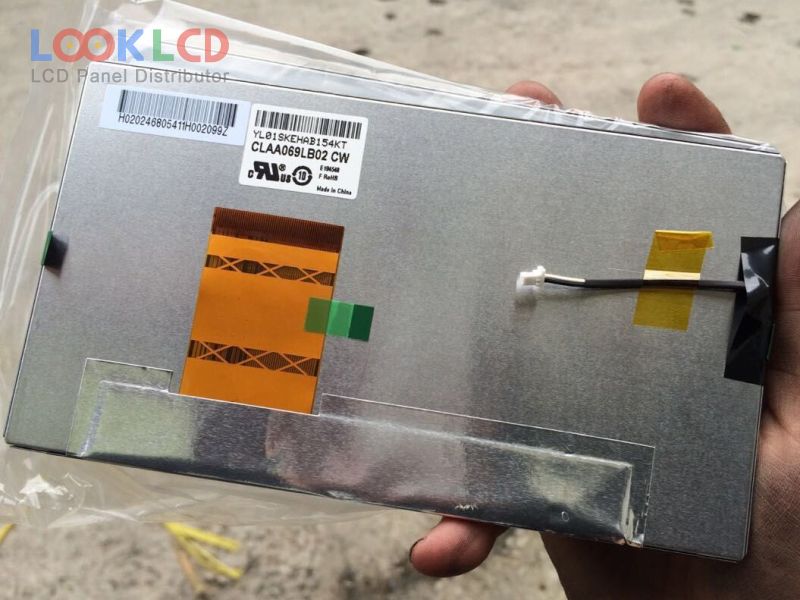

| PartNumber | CLAA069LB02CW |
| Značka | CPT |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 500 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | CPT |
| panelový model | CLAA069LB02CW |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 156.6×81.6 mm |
| obrys | 167×93×6.77 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193176% |
| Doba odezvy | 20 (Typ.)(Tr+Td) |
| úhel pohledu | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4S7PWLEDWithout Driver |
| signálové rozhraní | TTL (1 ch, 6-bit), 60 pins |
| vstupní napětí | 3.3/9.2/18.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikace | CNS |
| CLAA061LA0BCW | CPT | 6.1 | 800×480 |
| CLAA061LA0DCW | CPT | 6.1 | 800×480 |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| CLAA069JA11CW | CPT | 7.0 | 480×234 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| CLAA069LA1AAW | CPT | 7.0 | 800×480 |
| CLAA069LB02CW | CPT | 7.0 | 800×480 |
| CLAA069LB03CW | CPT | 7.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| 70WVW3A | SII | 7.0 | 800×480 |
| C070VW03 V0 | AUO | 7.0 | 800×480 |
| LA070WV1-TD01 | LG Display | 7.0 | 800×480 |
| LA080WV4-SD03 | LG Display | 8.0 | 800×480 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LB070WV1-TD01 | LG Display | 7.0 | 800×480 |
| LB080WV6-TA03 | LG Display | 8.0 | 800×480 |
| LTA070B511F | TOSHIBA | 7.0 | 800×480 |
| PW070XUA | E Ink | 7.0 | 480×234 |
| TFD58W22MW | TOSHIBA | 5.8 | 400×234 |
