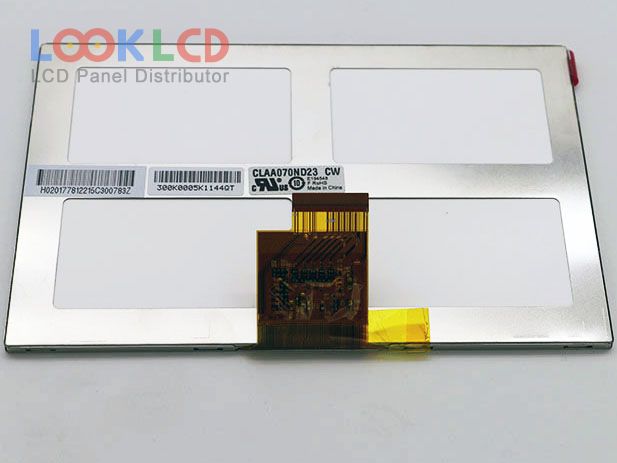

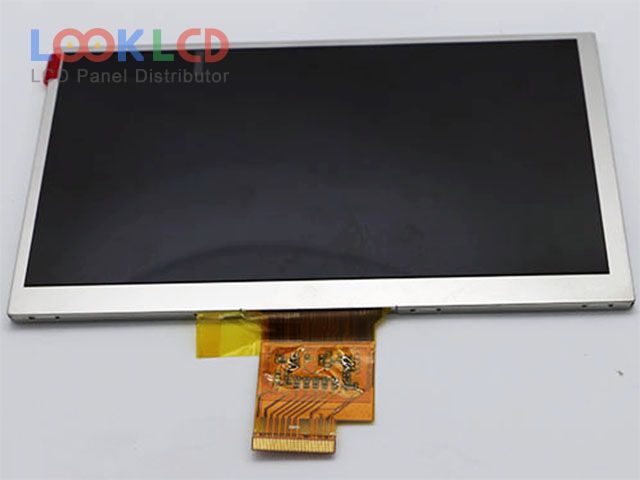

| PartNumber | CLAA070ND23CW |
| Značka | CPT |
| Velikost | 7.0 |
| aplikace | MP4 |
| Rozlišení | 1024×600 |
| Složení | LCM |
| Jas | 350 |
| CR | 700:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CPT |
| panelový model | CLAA070ND23CW |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 1024(RGB)×600 , WSVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 153.6×90 mm |
| obrys | 165.75×105.39×3.5 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 700:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Doba odezvy | 16 (Typ.)(Tr+Td) |
| úhel pohledu | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S8PWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6/8-bit), 40 pins |
| vstupní napětí | 3.3/9.6/18/-6V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikace | MP4 |
