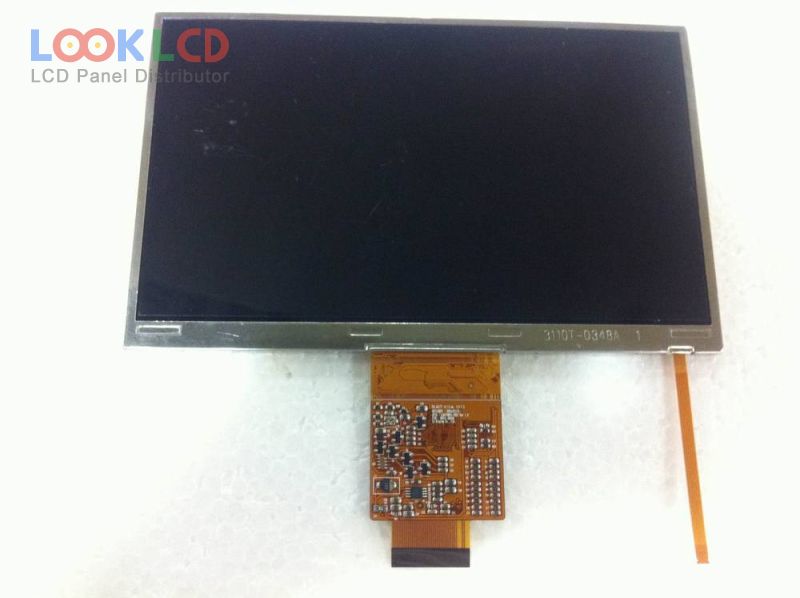

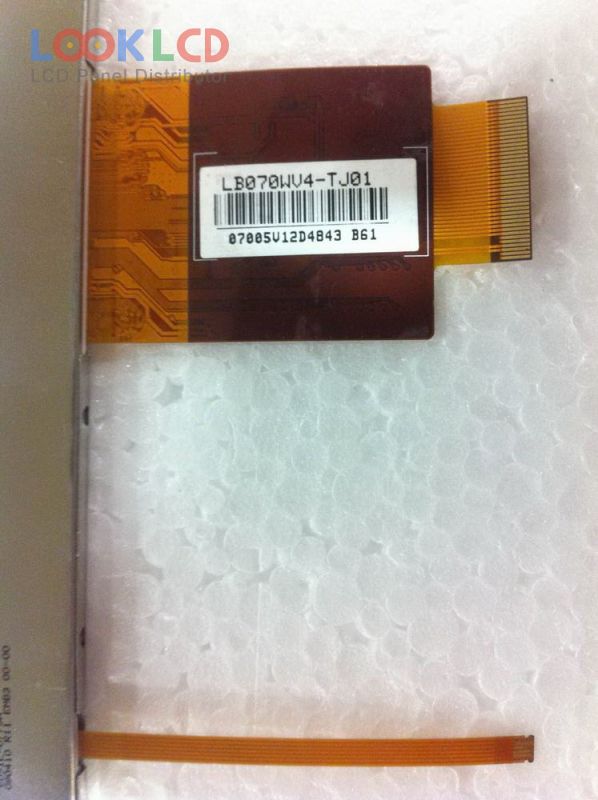

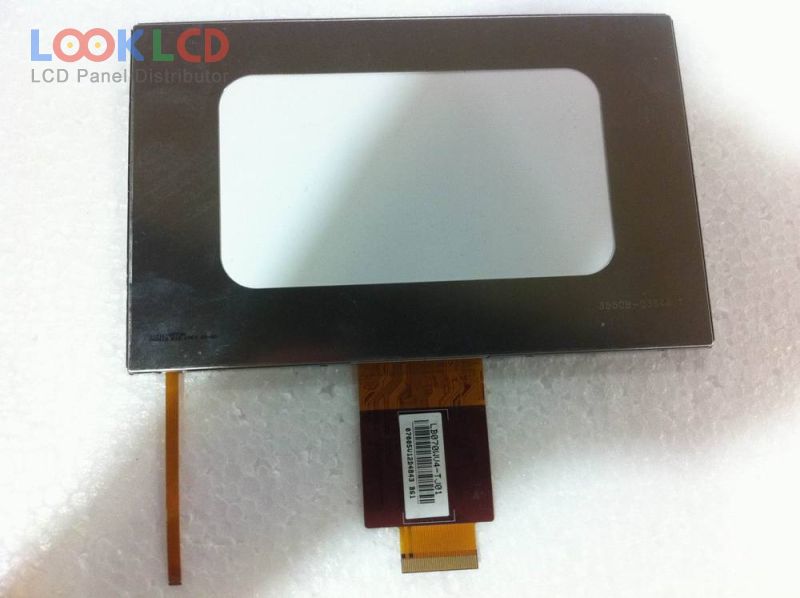

| PartNumber | LB070WV4-TJ01 |
| Značka | LG Display |
| Velikost | 7.0 |
| aplikace | MP4 |
| Rozlišení | 800×480 |
| Složení | CELL |
| Jas | 0 |
| CR | |
| Barvy | 16.7M |
| Podsvícení | No B/L |
| Rozhraní | TTL |
| značka panelu | LG Display |
| panelový model | LB070WV4-TJ01 |
| typ panelu | a-Si TFT-LCD , CELL |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 151.44×90.576 mm |
| povrch | |
| kontrastní poměr | |
| zobrazit barvy | 16.7M (8-bit), CIE193150% |
| Doba odezvy | |
| úhel pohledu | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit) |
| aplikace | MP4 |
| LB070W02-TMJ2 | LG Display | 7.0 | 480×234 |
| LB070WQ5-TD01 | LG Display | 7.0 | 480×240 |
| LB070WQ6-TD01 | LG Display | 7.0 | 400×234 |
| LB070WV1-TD03 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD04 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD07 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD12 | LG Display | 7.0 | 800×480 |
| LB070WV4-SD01 | LG Display | 7.0 | 800×480 |
| LB070WV4-TJ01 | LG Display | 7.0 | 800×480 |
| LB070WV6-TD06 | LG Display | 7.0 | 800×480 |
| AT070TN92 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.3 | Innolux | 7.0 | 800×480 |
| CLAA070ND23CW | CPT | 7.0 | 1024×600 |
| CLAA070ND28CW | CPT | 7.0 | 1024×600 |
| EJ070NA-01J | Innolux | 7.0 | 1024×600 |
| HSD070PFW3-D00 | HannStar | 7.0 | 1024×600 |
| LB070WV4-SD01 | LG Display | 7.0 | 800×480 |
| LB070WV6-TD08 | LG Display | 7.0 | 800×480 |
| LTG430WQ-F02 | Samsung | 4.3 | 480×272 |
| TM070DDH08 | Tianma | 7.0 | 1024×600 |
