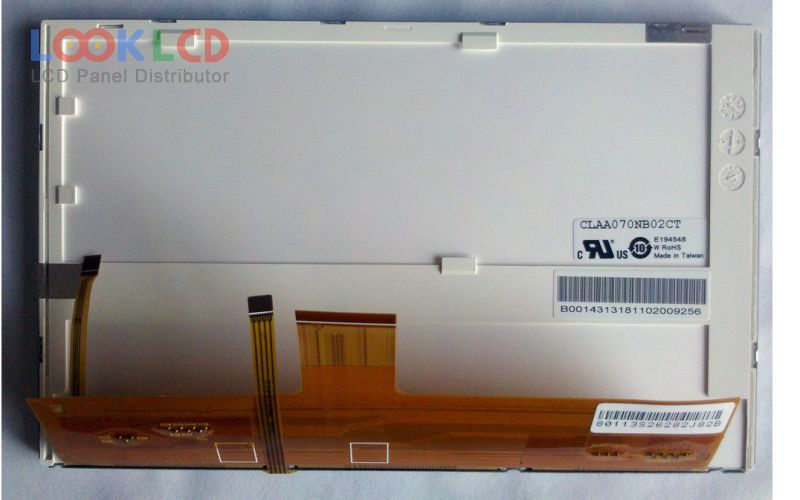

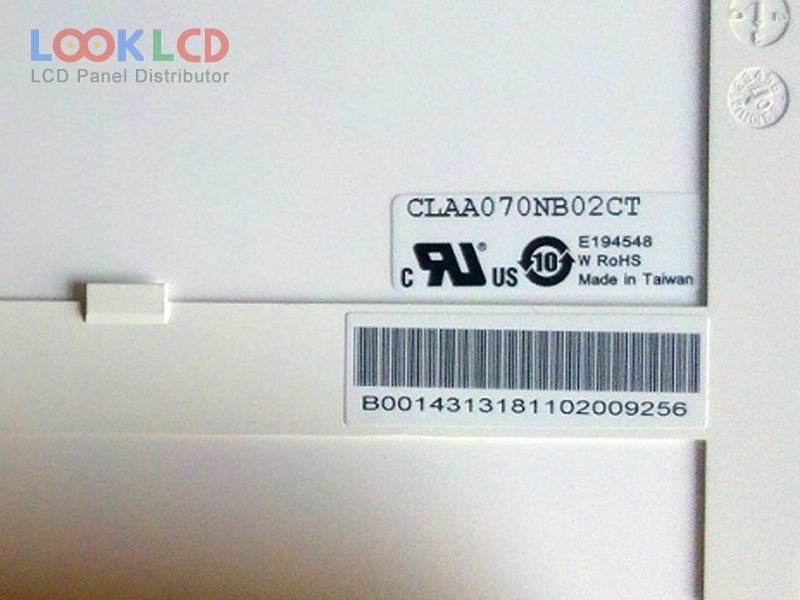

| PartNumber | CLAA070NB02CT |
| Značka | CPT |
| Velikost | 7.0 |
| aplikace | MP4 |
| Rozlišení | 1024×600 |
| Složení | LCM |
| Jas | 300 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | RSDS |
| značka panelu | CPT |
| panelový model | CLAA070NB02CT |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 1024(RGB)×600 , WSVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 153.6×90 mm |
| obrys | 162.9×102×5.8 mm |
| povrch | Antiglare |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 20 (Typ.)(Tr+Td) |
| úhel pohledu | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | WLEDWithout Driver |
| signálové rozhraní | RSDS (1 Channel), 61 pins |
| vstupní napětí | 3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VDDG/VEEG) |
| rohs: | |
| aplikace | MP4 |
