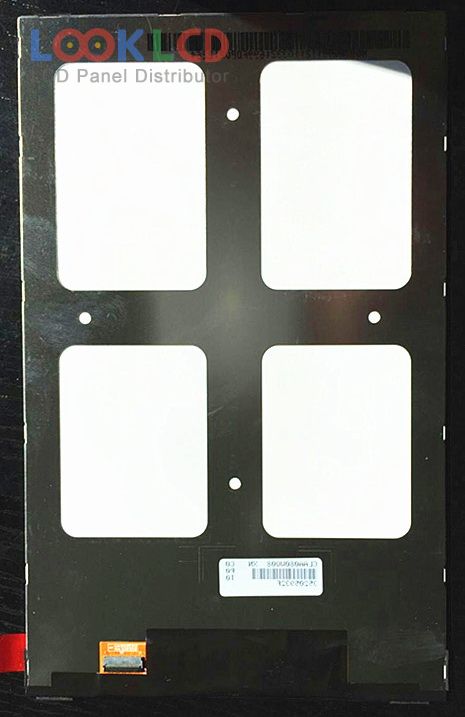

| PartNumber | CLAA080WQ08 XN |
| Značka | CPT |
| Velikost | 8.0 |
| aplikace | PAD |
| Rozlišení | 800×1280 |
| Složení | LCM |
| Jas | 400 |
| CR | 900:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MIPI |
| značka panelu | CPT |
| panelový model | CLAA080WQ08 XN |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.0 inch |
| rozlišení | 800(RGB)×1280 , WXGA |
| zobrazovací mód | HFFS, Normally Black, Transmissive |
| aktivní oblast | 107.64×172.224 mm |
| obrys | 114.6×184.1×4 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 900:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193153% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 7S3PWLEDWithout Driver |
| signálové rozhraní | MIPI (4 data lanes), 31 pins |
| vstupní napětí | 1.8/3.3V (Typ.)(VDDI/VCCI) |
| aplikace | PAD |
