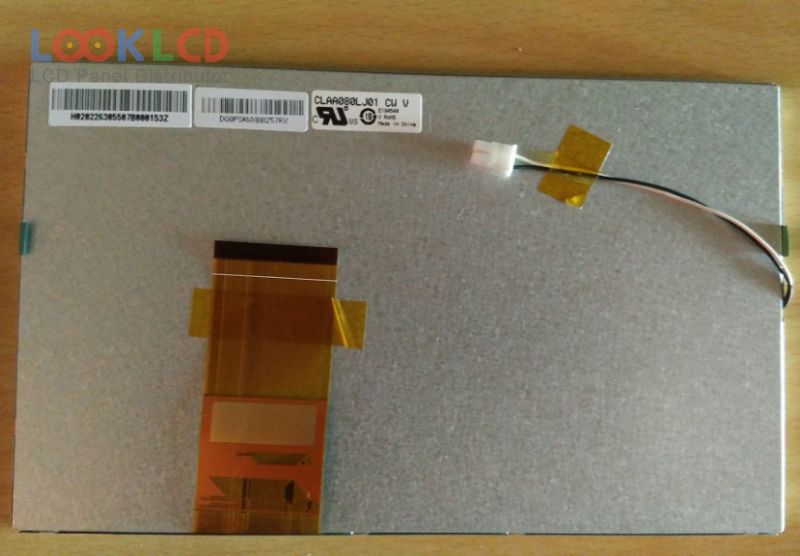

| PartNumber | CLAA080LJ01CW |
| Značka | CPT |
| Velikost | 8.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 450 |
| CR | 500:1 |
| Barvy | 262K/16.2M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | CPT |
| panelový model | CLAA080LJ01CW |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 176.64×99.36 mm |
| obrys | 192.8×116.9×7 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S10PWLEDWithout Driver |
| signálové rozhraní | TTL (1 ch, 6/8-bit), 60 pins |
| vstupní napětí | 3.3/9.2/18/-6V (Typ.)(DVDD/AVDD/VDDG/VEEG) |
| aplikace | CNS |
