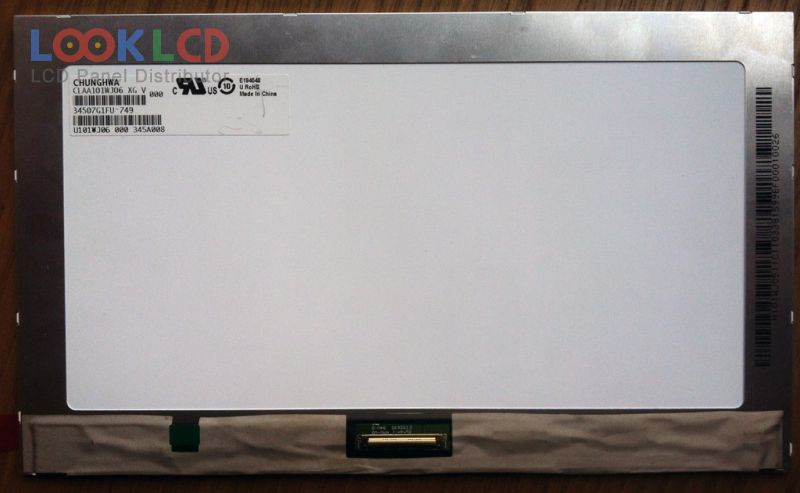

| PartNumber | CLAA101WJ06 |
| Značka | CPT |
| Velikost | 10.1 |
| aplikace | PAD |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 350 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CPT |
| panelový model | CLAA101WJ06 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | HFFS, Normally Black, Transmissive |
| aktivní oblast | 223.341×125.568 mm |
| obrys | 234.53×138.97×4.4 mm |
| povrch | Hard coating |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193150% |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S6PWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PAD |
