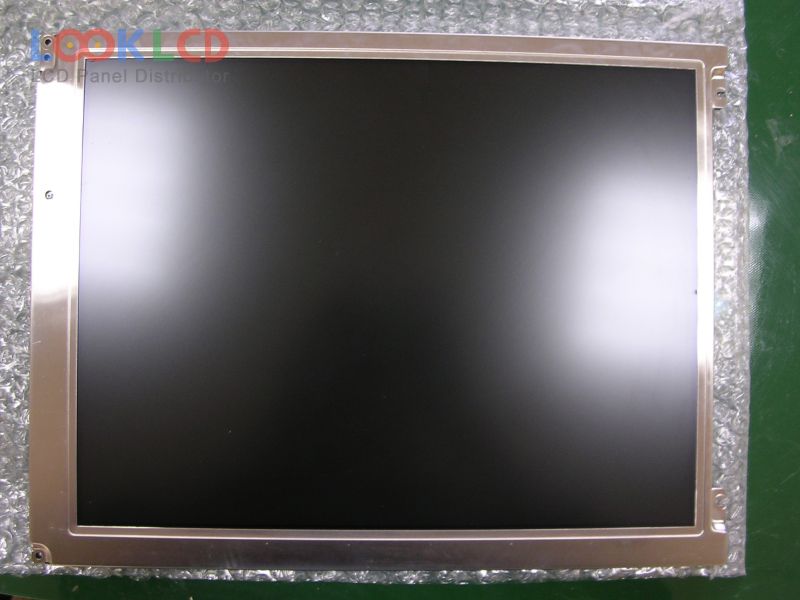

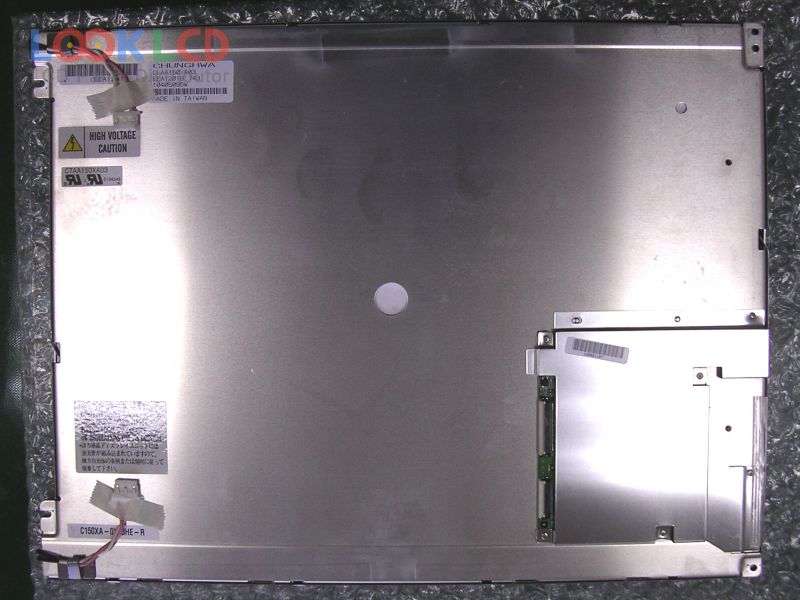

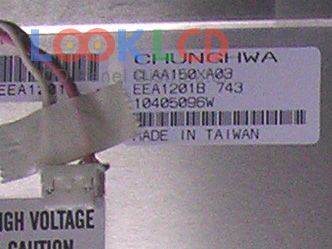

| PartNumber | CLAA150XA03 |
| Značka | CPT |
| Velikost | 15.0 |
| aplikace | DMPC |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 200 |
| CR | 350:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | CPT |
| panelový model | CLAA150XA03 0 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.0 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 304.128×228.096 mm |
| obrys | 350×266.5 mm |
| povrch | Antiglare |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 350:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 13/27 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | CMOS (2 ch, 8-bit), 75 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
