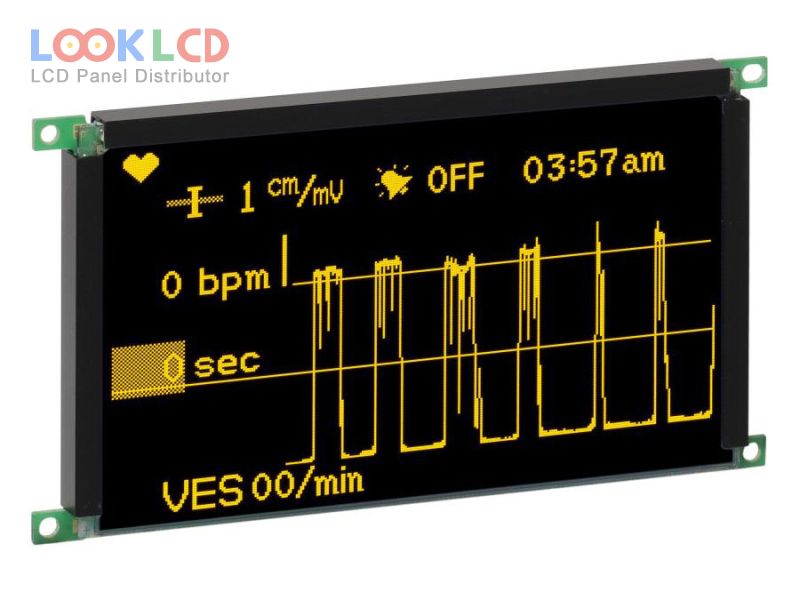

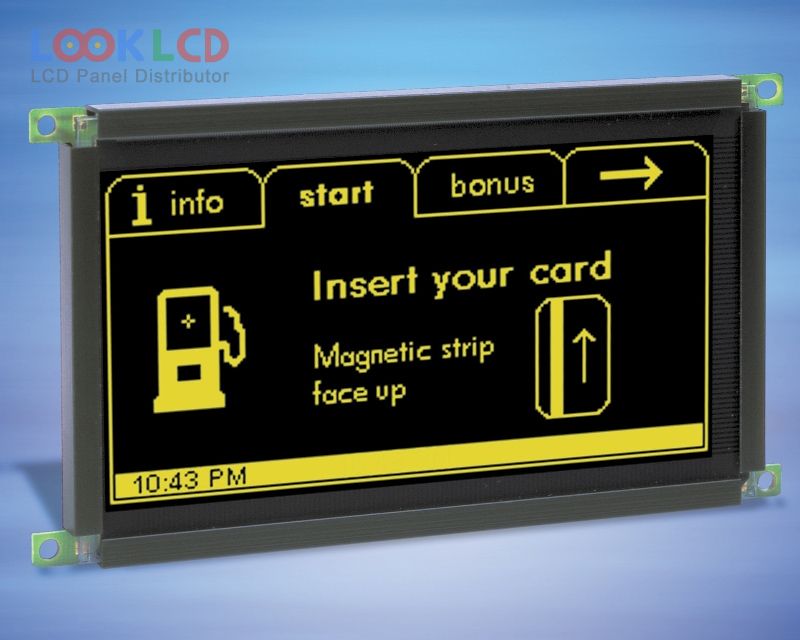

| PartNumber | EL240.128.45 |
| Značka | Lumineq |
| Velikost | 4.8 |
| aplikace | IA |
| Rozlišení | 240×128 |
| Složení | EL |
| Jas | 130 |
| CR | 100:1 |
| Barvy | Mono(Yellow) |
| Podsvícení | self |
| Rozhraní | CPU |
| značka panelu | Lumineq |
| panelový model | EL240.128.45 |
| typ panelu | EL , EL |
| velikost panelu | 4.8 inch |
| rozlišení | 240×128 |
| aktivní oblast | 107.9×57.5 mm |
| obrys | 140×128 mm |
| povrch | |
| jas | 130 cd/m² (Typ.) |
| kontrastní poměr | 100 : 1 (Typ.) |
| zobrazit barvy | Mono(Yellow) (1-bit) |
| úhel pohledu | 89/89/89/89 (Typ.)(L/R/U/D) |
| frekvence | 240Hz |
| signálové rozhraní | 8-bit 6080/8080 parallel, 24 pins |
| vstupní napětí | 5.0/12.0V (Typ.)(VL/VH) |
| aplikace | IA |
