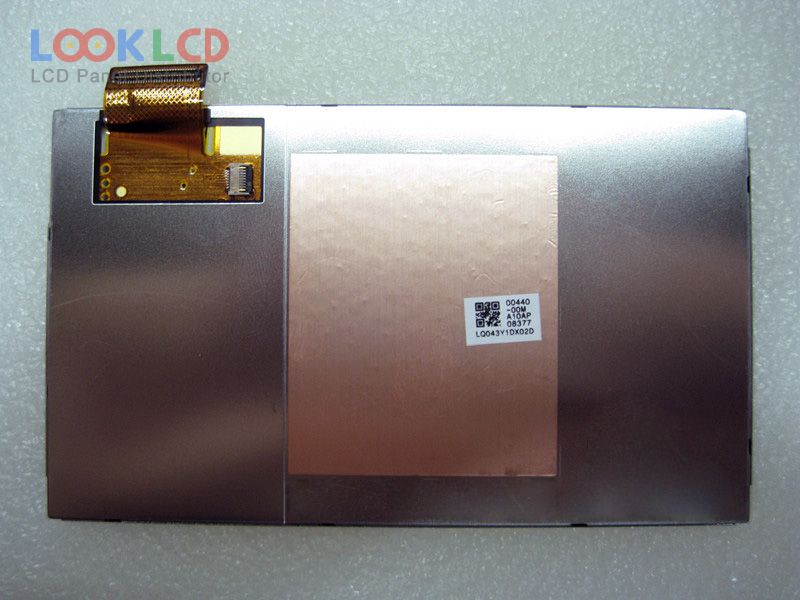

| PartNumber | LQ043Y1DX02 |
| Značka | SHARP |
| Velikost | 4.3 |
| aplikace | MPH |
| Rozlišení | 480×800 |
| Složení | LCM |
| Jas | 340 |
| CR | 900:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ043Y1DX02 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 4.3 inch |
| rozlišení | 480(RGB)×800 , WVGA |
| zobrazovací mód | ASV, Normally Black, Transmissive |
| aktivní oblast | 56.16×93.6 mm |
| obrys | 62.46×105.9×2.3 mm |
| povrch | Hard coating (3H) |
| jas | 340 cd/m² (Typ.) |
| kontrastní poměr | 900:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 35 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 8S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit) + SPI, 60 pins |
| vstupní napětí | 3.3/2.6V (Typ.)(VCI/VDDIO) |
| aplikace | MPH |
