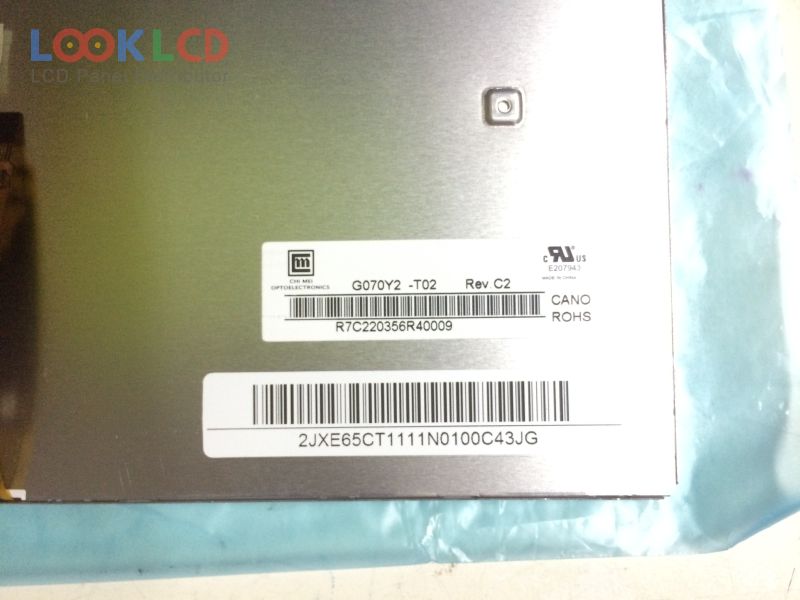

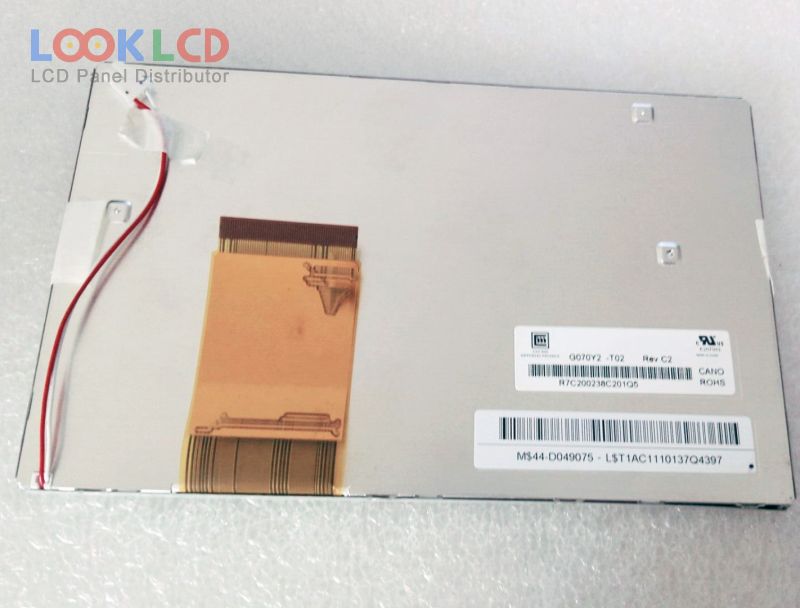

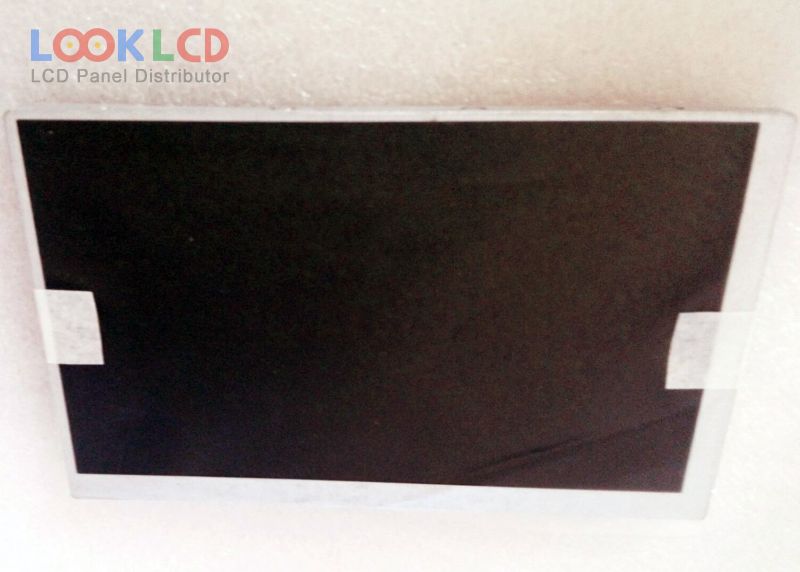

| PartNumber | G070Y2-T02 |
| Značka | Innolux |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 500 |
| CR | 600:1 |
| Barvy | 262K/16.2M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | CMO |
| panelový model | G070Y2-T02 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 165×104×6.83 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 262K/16.2M (6-bit / 6-bit + FRC), CIE193172% |
| Doba odezvy | 5/11 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 7S2PWLEDWithout Driver |
| signálové rozhraní | TTL (1 ch, 6/8-bit), 60 pins |
| vstupní napětí | 3.3/10/19/-6.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikace | CNS |
