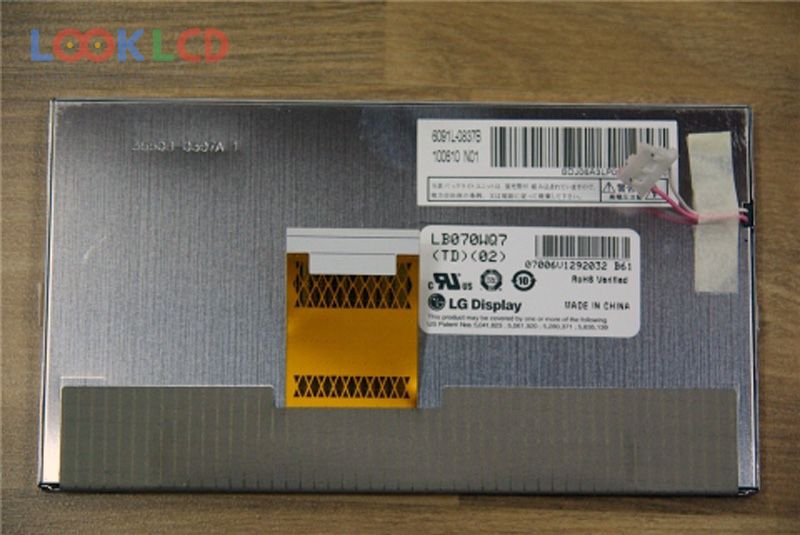

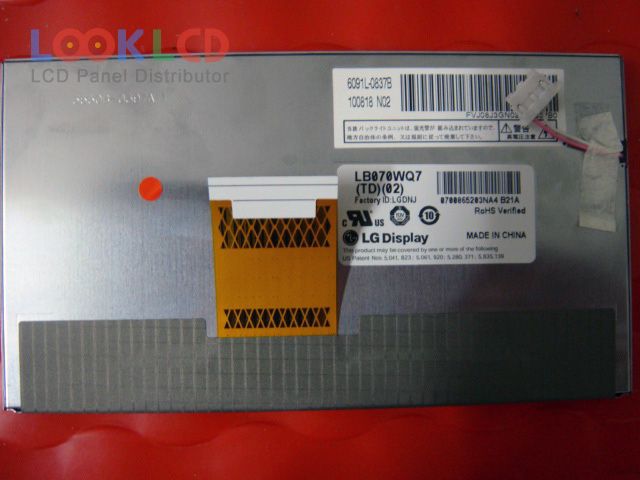

| PartNumber | LB070WQ7-TD02 |
| Značka | LG Display |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 480×234 |
| Složení | LCM |
| Jas | 450 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | LG Display |
| panelový model | LB070WQ7-TD02 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 480(RGB)×234 |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 156.24×82.368 mm |
| obrys | 167×93 mm |
| povrch | |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | |
| úhel pohledu | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | CCFL |
| signálové rozhraní | TTL (1 ch, 6-bit) |
| aplikace | CNS |
