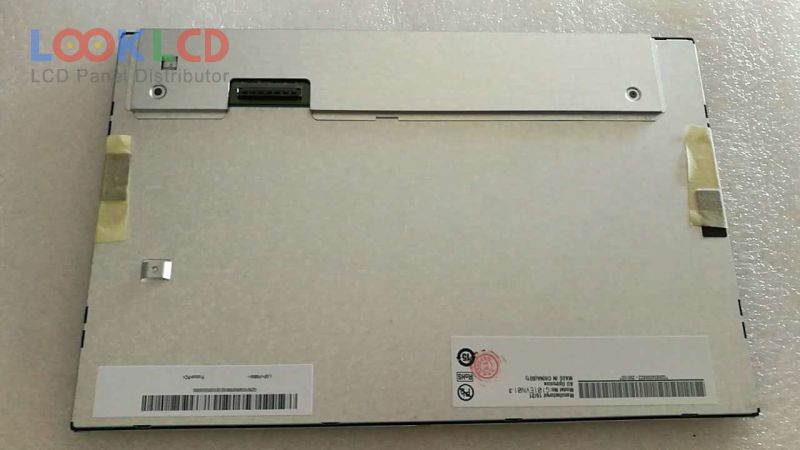

| PartNumber | G101EVN01.3 |
| Značka | AUO |
| Velikost | 10.1 |
| aplikace | IA |
| Rozlišení | 1280×800 |
| Složení | LCM |
| Jas | 500 |
| CR | 1300:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | G101EVN01.3 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | MVA, Normally Black, Transmissive |
| aktivní oblast | 216.96×135.6 mm |
| obrys | 227.91×148×8.34 mm |
| povrch | Hard coating, Reflection 1.5% (Typ.) |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 1300:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + FRC), CIE193145% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |

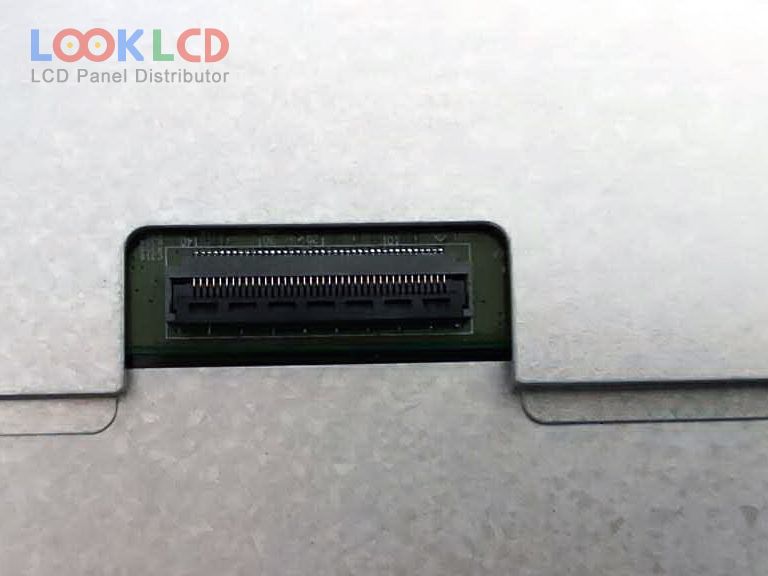

| signálové rozhraní | LVDS (1 ch, 6/8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
